Remove/install radiator - AR20.20-P-3865R (SL500, SL55 AMG, SL600)
ENGINE 113.963 in MODEL 230.475
ENGINE 113.992 in MODEL 230.474
ENGINE 112.973 in MODEL 230.467
ENGINE 275.951 in MODEL 230.476
ENGINE 113.995 in MODEL 230.472
ENGINE 275.954 in MODEL 230.477
MODIFICATION NOTES
| 22.11.02 | Dismount bracket at radiator - added | Step 14 | |
| 22.11.02 | Remove right air intake pipe - added | Step 6 |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| 1 | Remove front part of engine compartment paneling | AR61.20-P-1105R | |
| 2 | Remove paneling on left below bumper | ||

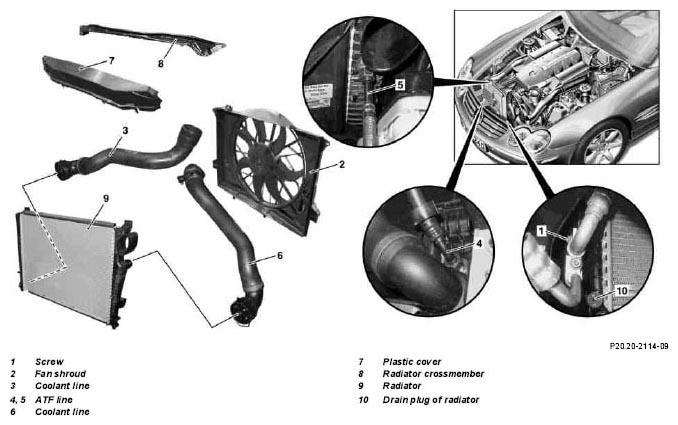

| 3 | Remove bolt (1) | ||
| 4 | Open drain plug (10) at radiator (9) and drain coolant | ||
| Model 230.472/ 474/ 475 | AR20.00-P-1142RVK | ||
| Model 230.476/ 477 | AR20.00-P-1142H | ||
| Notes on coolant | AH20.00-P-1142-01V | ||
| 5 | Remove fan shroud (2). | Model 230.467 /472 /474 /475 | AR20.40-P-6800AB |
| Model 230.476 /477 | AR20.40-P-6800AC | ||
| 6.1 | Remove right air intake pipe to air filter | Model 230.467 /472 /474 /475 | |
| 7 | Dismount coolant line (3) at radiator (9) | ||
| 8 | Dismount automatic oil lines (4, 5) at radiator (9) | ||
| Fig 2 | |||
| *BA20.20-P-1001-01A | |||
| 9 | Remove coolant line (6) at radiator (9) | ||
| 10 | Pull off hood seal | ||
| 11 | Remove plastic cover (7) | ||
| 12 | Dismount radiator crossmember (8) | ||
| 13 | Dismount coolant line to expansion reservoir at radiator (9) | ||
| 14 | Dismount bracket of refrigerant line at radiator | ||
| 15 | Dismount capacitor from radiator (9) | ||
| 16 | Take out radiator (9) | ||
| 17 | Install in the reverse order | ||
| 18 | Pour in coolant | ||
| Model 230.472/ 474/ 475 | AR20.00-P-1142RVK | ||
| Model 230.476/ 477 | AR20.00-P-1142H | ||
| 19 | Check oil level in automatic transmission, correct if necessary | Transmission 722.6 | AR27.00-P-0100AC |
| Transmission 722.9 | AR27.00-P-0100W | ||
| 20 | Inspecting cooling system for leaks | Model 230.467 | AR20.00-P-1010HA |
| Model 230.472/ 474/ 475 | AR20.00-P-1010RVK | ||
| Model 230.476 /477 | AR20.00-P-1010HN |
RADIATOR, COOLANT HOSES
| Number | Designation | Engine 112 except 112.942/970, engine 113.940/941/ 943/944/945/ 946/948/960/ 961/962/963/ 966/967/968/ 969/980/982/ 984/986/992/ 993/995 | Engine 275 | |
|---|---|---|---|---|
| BA20.20-P-1001-01A | Union nut, automatic transmission oil line to radiator | Nm | 20 | 25 |
