Charge Air Cooler Circulation Pump Relay, Location/Task/Design/Function - GF09.41-P-3106M: Notes

Engine 275.950 In Model 215, 220

Engine 275.951 In Model 230

Engine 275.953 In Model 216, 221

Engine 275.954 In Model 230

Engine 275.980 In Model 215, 220

Engine 275.981 In Model 230

Engine 275.982 In Model 216, 221

Engine 285.950 In Model 240

Engine 285.980 In Model 240

Shown On Engine 275.950/951/980, 285

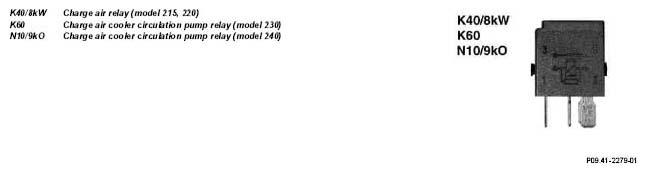

Fig 1: Identifying Charge Air Cooler Circulation Pump Relays

Courtesy of MERCEDES-BENZ USA

Relay for charge air cooler recirculation pump location	Model 215, 220	GF09.41-P-3106-01MA
	Model 216, 221 with engine 275.953/982	GF09.41-P-3106-01MS
	Model 230 with engine 275.951/954	GF09.41-P-3106-01RA
	Model 230 with engine 275.981	GF09.41-P-3106-01RB
	Model 240	GF09.41-P-3106-01MM
Relay for charge air cooler recirculation pump - task	Actuates the charge air cooler recirculation pump.
Relay for charge air cooler recirculation pump - design	Relay for charge air cooler recirculation pump is a 4-pin plug-in relay.
Relay for charge air cooler recirculation pump, function	On actuation of the ME control unit by a ground signal, the power supply contact closes and thus supplies the charge air cooler recirculation pump (M44) fused with a voltage (circuit 87).
