Charge air cooler recirculation pump relay, location - GF09.41-P-3106-01RB

The charge air cooler circulation pump relay is located upstream of the rear fuse and relay module.

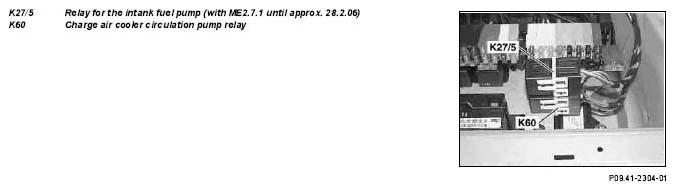

Fig 1: Identifying Intake Fuel Pump And Air Cooler Recirculation Pump Relay
G05068048Courtesy of MERCEDES-BENZ USA
