Keyless Go control unit, location/task/design - GF80.61-P-4104R

MODEL 230 up to 28.2.06 with CODE (889) Keyless Go

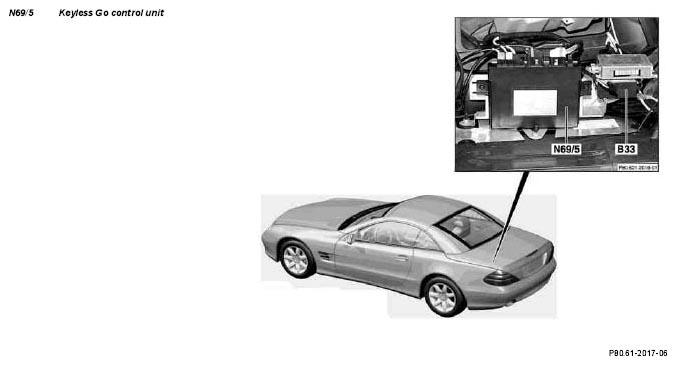

Fig 1: Identifying Keyless Go Control Unit Location

Courtesy of MERCEDES-BENZ USA

	Keyless Go control unit, location	The Keyless Go control unit (N69/5) is located on left rear side of the trunk.
	Keyless Go control unit, task	up to 31.12.02	GF80.61-P-4102-02R
		as of 1.1.03	GF80.61-P-4102-02RS
	Keyless Go control unit, design	The actuation/evaluation electronic circuitry of the Keyless Go system is integrated into the Keyless Go control unit (N69/5).
