Retrofit digital TV tuner - AZ82.60-P-0007RA: Notes

MODEL 230 as of 1.6.04 with CODE (860) TV tuner

vehicles with MOST fiber optic cable

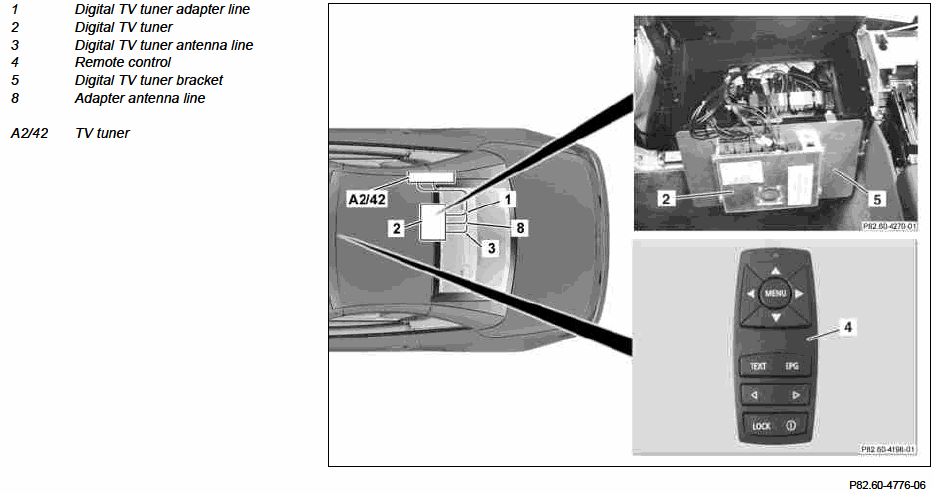

Fig 1: Retrofitting Digital TV Tuner

Courtesy of MERCEDES-BENZ USA

	Removing
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground cable		AR54.10-P-0003R
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove rear luggage box	Remove right rear luggage box	AR68.30-P-7440RA
	Installing
3	Retrofit digital TV tuner control unit		AZ82.60-P-0007-01RA
4	Retrofit TV tuner wiring harness	Risk of fracture! Do not kink optical waveguide, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optic cable and do not compress with clamps or tie straps.	AN82.60-P-0001-03RA
5	Carry out start-up and function test		AZ82.61-P-0001-04MM
6	Install remaining parts onto vehicle
