Remove/install differential - AR35.31-P-0520SZ

MODEL 221.054/056/070/071/077/084/086/087/095/176/177/179, 216.374/376/377/379

MODEL 221.128 with CODE (Z07) Top protection

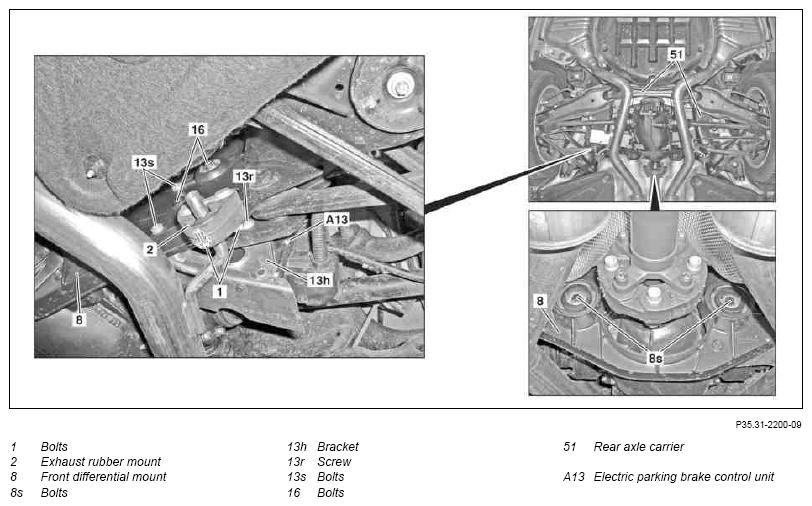

Fig 1: Identifying Differential Remove/Install Components (1 Of 2)
G10109968Courtesy of MERCEDES-BENZ USA

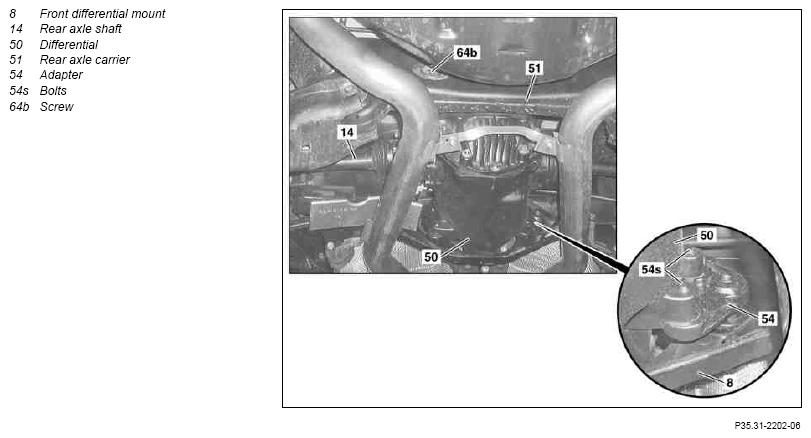

Fig 2: Identifying Differential Remove/Install Components (2 Of 2)
G10109969Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
1 Lower rear axle.   AR35.10-P-0015SX
2.1 Detach rear axle shafts (14) from connecting flanges Vehicles with screwed-on rear axle shafts (14)
IMPORTANT Move the rear axle shaft (14) into approximately the horizontal position and push together.
Remove rear axle shafts (14) upward at an angle from connecting flanges and tie securely to rear axle carrier (51).		 AR35.30-P-0620SZ
2.2 Remove right rear axle shaft (14) Vehicles with inserted rear axle shafts (14) AR35.30-P-0620SX
3 Support differential (50) with transmission jack and transmission plate and lash down securely
4 Remove bolts (1) and remove exhaust rubber mount (2) TORQUE SPECIFICATION Gasoline engine *BA49.10-P-1009-01Z
TORQUE SPECIFICATION Diesel engine *BA49.10-P-1006-01AA
5 Detach bracket (13h) of controller unit (A13) on front differential mount (8) and detach rear axle carrier (51) Refer to "Remove/install front differential mount (8) on rear axle carrier (51)". AR35.10-P-0051SZ
6 Remove bolt (64b) of rear differential mount and remove bolt (64b) TORQUE SPECIFICATION Model 216, 221 without code (Z07) Highest protection *BA35.10-P-1004-01M
TORQUE SPECIFICATION Model 221 with CODE (Z07) Top protection *BA35.10-P-1004-01O
7 Remove left and right bolts (16) of the front differential mount (8) TORQUE SPECIFICATION Model 216, 221 without code (Z07) Highest protection *BA35.10-P-1003-01M
TORQUE SPECIFICATION Model 221 with code (Z07) Top protection *BA35.10-P-1003-01O
8 Push left rear axle shaft (14) out of rear axle differential (50) Vehicles with inserted rear axle shafts (14)
Refer to "Remove/install rear axle shaft (14)". AR35.30-P-0620SX
9 Lower the rear axle differential (50) and remove
10 Remove bolts (8s) and remove front differential mount (8) from rear axle differential (50) When fitting new rear axle differential (50)
    TORQUE SPECIFICATION Model 216, 221 without code (Z07) Highest protection *BA35.10-P-1007-01M
    TORQUE SPECIFICATION Model 221 with code (Z07) Top protection *BA35.10-P-1007-01O
11 Remove bolts (54s) and remove adapter (54) from rear axle differential (50) When fitting new rear axle differential (50)
    TORQUE SPECIFICATION Model 216, 221 without code (Z07) Highest protection *BA35.10-P-1006-01M
    TORQUE SPECIFICATION Model 221 with code (Z07) Top protection *BA35.10-P-1006-01O
12 Detach extension bracket from rear axle differential (50) When fitting new rear axle differential (50)
Refer to "Remove/install end cover on differential (50)". AR35.31-P-0554SZ
13 Install in the reverse order
14 Perform wheel alignment check   AR40.20-P-0200SX
REAR AXLE CARRIER

Number Designation Model 216
BA35.10-P-1003-01M Self-locking bolt, front crossmember to rear axle carrier Stage 1 Nm 50
Stage 2 ∠° 90
BA35.10-P-1004-01M Self-locking nut securing rear extension bracket to rear axle carrier Stage 1 Nm 100
Stage 2 ∠° 90
BA35.10-P-1006-01M Adapter to rear axle differential Stage 1 Nm 110
Stage 2 ∠° 90
BA35.10-P-1007-01M Adapter to front transverse bridge Stage 1 Nm 50
Stage 2 ∠° 90
REAR AXLE CARRIER

Number Designation Model 221 with code Z07/Z07+Z19
BA35.10-P-1003-01O Self-locking bolt, front crossmember to rear axle carrier Stage 1 Nm 50
Stage 2 ∠° 90
BA35.10-P-1004-01O Self-locking nut securing rear extension bracket to rear axle carrier Stage 1 Nm 100
Stage 2 ∠° 90
BA35.10-P-1006-01O Adapter to rear axle differential Stage 1 Nm 110
Stage 2 ∠° 90
BA35.10-P-1007-01O Adapter to front transverse bridge Stage 1 Nm 50
Stage 2 ∠° 90
REAR AXLE CARRIER

Number Designation Model 221 except 221.176/179 with rear axle differential 240V Model 221.176/179 with rear axle differential 240V
BA35.10-P-1003-01M Self-locking bolt, front crossmember to rear axle carrier Stage 1 Nm 50 50
Stage 2 ∠° 90 90
BA35.10-P-1004-01M Self-locking nut securing rear extension bracket to rear axle carrier Stage 1 Nm 100 100
Stage 2 ∠° 90 90
BA35.10-P-1006-01M Adapter to rear axle differential Stage 1 Nm 110 120
Stage 2 ∠° 90 -
BA35.10-P-1007-01M Adapter to front transverse bridge Stage 1 Nm 50 50
Stage 2 ∠° 90 90
EXHAUST SYSTEM

Number Designation Engine 272 in model 221 Engine 273 in model 221 Engine 275 in model 221
BA49.10-P-1009-01Z Bolt, exhaust rubber mount to rear axle carrier Nm 20 20 20
EXHAUST SYSTEM

Number Designation Engine 275 in model 216 Engine 157 in model 216/221
BA49.10-P-1009-01Z Bolt, exhaust rubber mount to rear axle carrier Nm 20 20
EXHAUST SYSTEM

Number Designation Engine 156 in model 216 Engine 156 in model 221
BA49.10-P-1009-01Z Bolt, exhaust rubber mount to rear axle carrier Nm 20 20
EXHAUST SYSTEM

Number Designation Engine 629
BA49.10-P-1006-01AA Bolt, exhaust rubber mount to rear axle carrier or frame floor assembly Nm 20
