Remove/install rear axle shaft flange and angular ball bearing - AR35.20-P-0130SXA

MODEL 216.379

MODEL 221.179

MODEL 221 with CODE (Z07) maximum protection

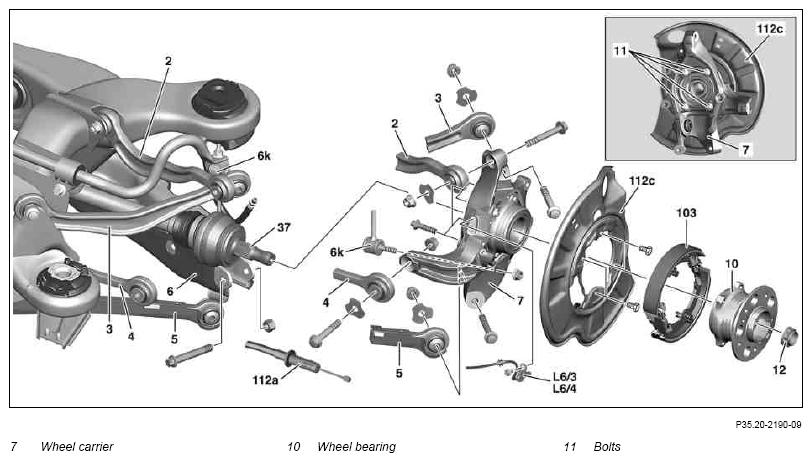

Fig 1: Identifying Rear Axle Shaft Flange And Angular Ball Bearing Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.10

Special tool 140 589 01 34 00 replaced by special tool 211 589 02 34 00

Model 216.379, model 221.179

AR35.20-P-0115-02SXA

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the parts will be affected
	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1	Remove wheel carrier (7)		AR35.20-P-0115SX
2	Press rear axle shaft flange out of wheel bearing (10)	Model 221 with code (Z07) Top protection	AR35.20-P-0130-08SXS
			Fig 2
			Figure
		Bearing inner race remains on the rear axle shaft flange: ↓	Fig 4
		Pull bearing inner race off rear axle shaft flange.	AR35.20-P-0130-02SX
			Figure
			Fig 6
			Figure
3.1	Detach wheel bearing (10) with rear axle shaft flange from wheel carrier (7), to do this remove bolts (11)	Model 216.379, model 221.179
3.1			*BA35.20-P-1001-06A
3.2	Press wheel bearing (10) out of rear axle shaft flange	Model 216.379, model 221.179	AR35.20-P-0115-02SXA
			Figure
			Figure
			Figure
			Figure
			Fig 2
4	Press wheel bearing out of wheel carrier (7)	Model 221 with code (Z07) Top protection	AR35.20-P-0130-03SXS
			Fig 2
			Fig 4
5	Install in the reverse order
6	Perform a wheel alignment check		AR40.20-P-0200SX
