Remove/install center door - AR72.14-P-0010SXS

MODEL 221.176 with CODE (Z07) Top protection with CODE (Z19) S600 Pullman Guard state sedan

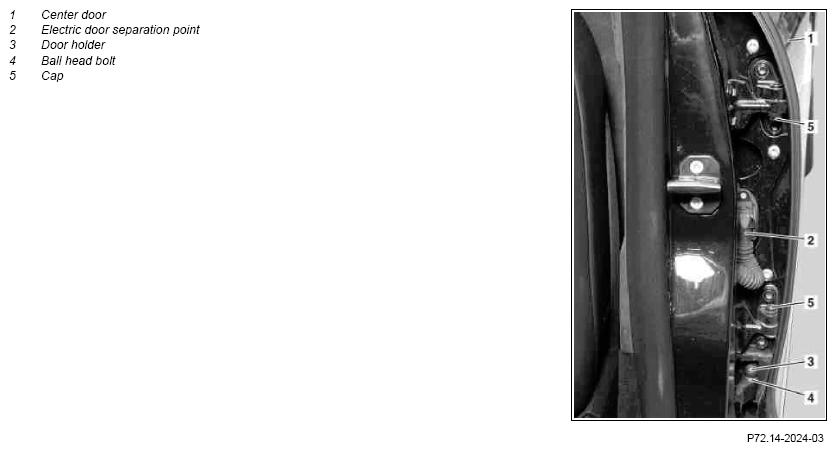

Fig 1: Identifying Center Door Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open center door (1)	Before opening and closing the center door (1) open front and rear door. The center door (1) should be slammed, not pushed closed.
2	Remove window in center door (1)		AR72.14-P-0150SXS
3	Disconnect electrical door separation point (2)
4	Press door holder (3) off of ball stud (4) on B1-pillar		Figure
5	Remove caps (5) and remove bolts below		*BA72.14-P-1004-01B
6	Remove center door (1) from door hinge leaves on B1-pillar	Carefully remove center door (1) to prevent damage to front door and rear door. Multifunctional lifting/holding device
7	Install in the reverse order
8	Check adjustment of center door (1), correct if necessary		AR72.14-P-0015SXS

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
