Remove/install fan shroud - AR20.40-P-6800SX
ENGINE 272, 273 in MODEL 221
ENGINE 273 in MODEL 216

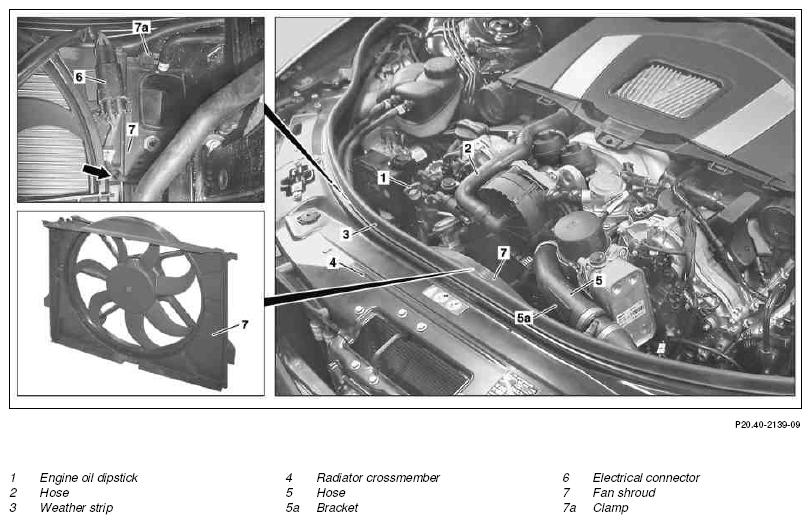

Shown on engine 273
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove bottom engine compartment paneling | Engine 273 | AR61.20-P-1105SX |
| 3 | Drain coolant at radiator | Engine 273 | AR20.00-P-1142SX |
| 4 | Remove engine intake air duct and front engine cover | See "Remove/install air filter housing". | AR09.10-P-1150SX |
| 5 | Remove engine oil dipstick (1) | Model 221 with engine 273 without 4MATIC | |
| 6.1 | Remove hose (2) | Model 221 with engine 273 without 4MATIC | |
| 6.2 | Remove coolant pipe | Model 221 with engine 273 with 4MATIC | |
| See Remove/install power steering expansion reservoir. | AR46.25-P-1000SX | ||
| 7 | Remove upper radiator crossmember | Vehicles with engine 273 and 4MATIC | |
| See Completely replace front end with reinforcement. | AR62.30-P-1570SX | ||
| 8 | Detach edge stripping (3) in the area of the radiator crossmember (4) | ||
| 9 | Detach hose (5) from radiator and temperature control switch housing and place to the side with bracket (5a) | Engine 273 | AR09.41-P-1311-01AL |
| 10 | Disconnect electrical connector (6) on electrical suction fan | ||
| 11 | Remove feed line for electrical suction fan from fan shroud (7) (arrow) | ||
| 12 | Remove clamps (7a) on the left and right on fan shroud (7) | ||
| 13 | Take out fan shroud (7) towards top | ||
| 14 | Install in the reverse order |
