Remove/install rear door holder - AR72.12-P-2100SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown on model 221.0

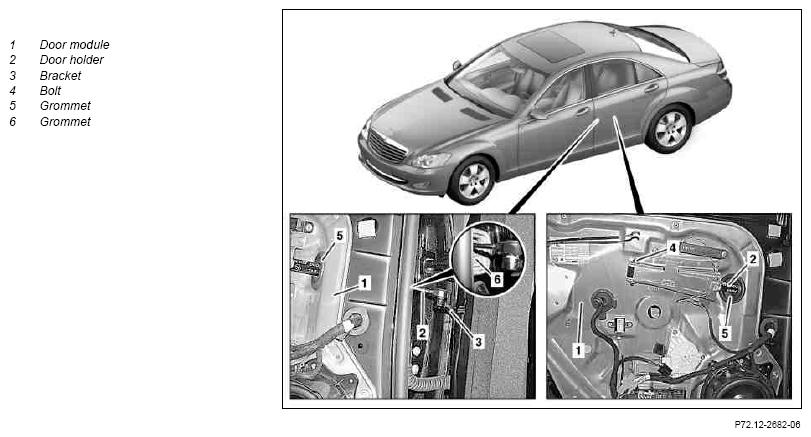

Fig 1: Identifying Rear Door Holder Remove/Install Components - Shown On Model 221.0

G10128577

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining from rear door		AR72.12-P-1010SX
2	Press door holder (2) off of bracket (3) on B-pillar with suitable screwdriver.	Carefully unclip door holder (2); if necessary, use rag to protect against paint damage.
3	Unscrew screw (4)		*BA72.12-P-1008-01M
3	Unscrew screw (4)	Loctite 262	*BR00.45-Z-1059-02A
4	Remove door holder (2) toward rear from door module (1).	Moisten grommets (5, 6) with lubricant to facilitate installation.
4	Remove door holder (2) toward rear from door module (1).	Antifriction agent	*BR00.45-Z-1010-06A
5	Install in the reverse order

REAR DOOR

Number	Designation		Model 221
BA72.12-P-1008-01M	Bolt, door holder to door module	Nm	25

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1059-02A	Loctite 262	Henkel Loctite Deutschland GmbH
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
