Remove/install rear door lining - AR72.12-P-1010SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

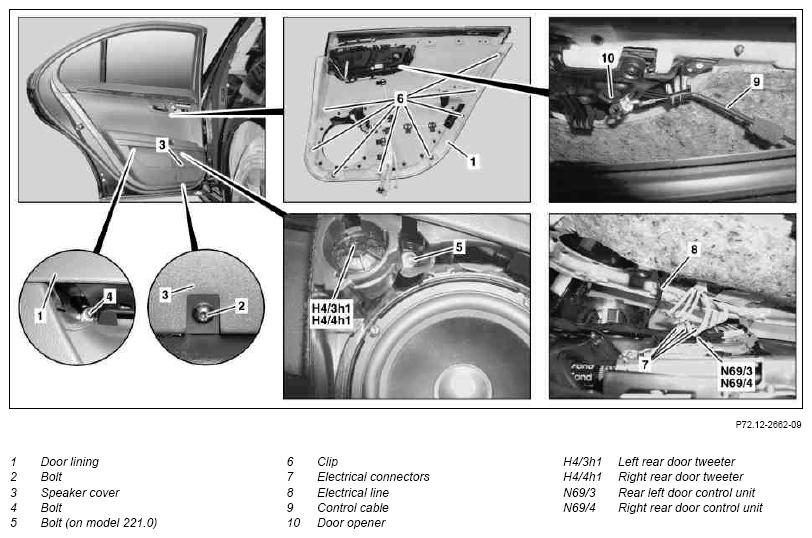

Fig 1: Identifying Rear Door Lining Remove/Install Component - Shown On Model 221.0

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0

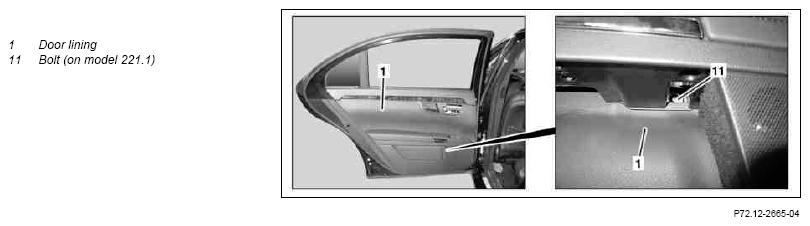

Fig 2: Identifying Rear Door Lining Remove/Install Component - Shown On Model 221.1

Courtesy of MERCEDES-BENZ USA

Shown on model 221.1

	Remove/install
1	Wind crank window fully down
2.1	Unscrew bolt (2) and unclip speaker cover (3).	With model 221.0
			Figure
3	Unscrew screw (4)		*BA72.12-P-1009-01M
4.1	Unscrew bolt (5).	With model 221.0
			*BA72.12-P-1009-01M
4.2	Unscrew bolt (11).	With model 221.1
			*BA72.12-P-1009-01M
5	Unclip door lining (1) and remove from rear door until electrical connector (7) are accessible.	Move mounting wedge directly onto clips (6) and ensure that retainer tabs on clips do not tear out of door lining (1).
		Replace damaged clips (6).	Figure
6	Disconnect electrical connectors (7) from left rear door control unit (N69/3) or right rear door control unit (N69/4) and connector of electrical line (8) from left rear door tweeter (H4/3h1) or right rear door tweeter (H4/4h1)	The number of electrical connectors (7) can vary depending on the equipment.
7	Unhook Bowden cable (9) from door opener (10) and remove door lining (1).
8	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
