Remove/install inner paneling at window frame of front door - AR72.10-P-6580SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

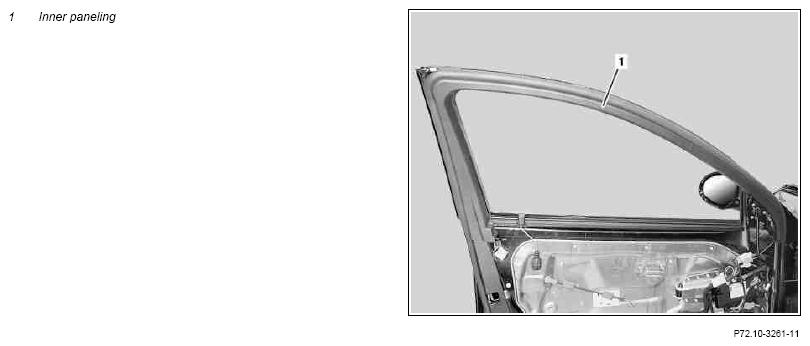

Fig 1: Identifying Front Door Window Frame Inner Paneling Remove/Install Component
G10128483Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove front door lining   AR72.10-P-1000SX
2 Unclip inner paneling (1) and remove INSTALLATION IMPORTANT Position door sealing frame above inner paneling (1).
3 Install in the reverse order
