Remove/install front door window lifter - AR72.10-P-1800SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

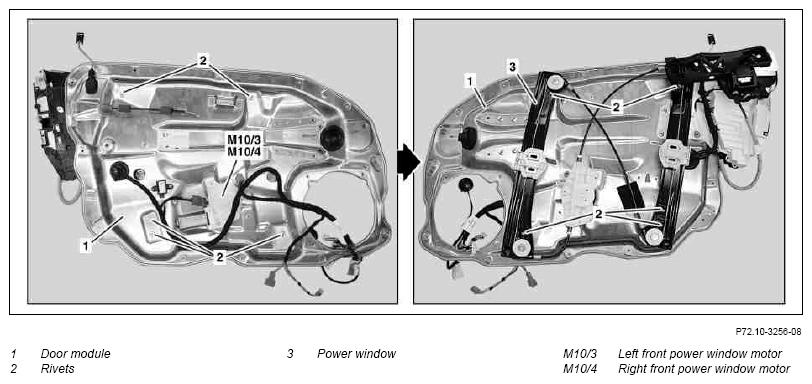

Fig 1: Identifying Front Door Window Lifter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

17.8.06

Tool changed

Steps 3.1, 3.2

	Remove/install
1	Remove door module (1) from left and right front door		AR72.10-P-0900SX
2	Remove left front power window motor (M10/3) or right front power window motor (M10/4)		AR72.29-P-1860SX
3.1	Drill out rivet heads on rivets (2) with Ø 6.5 mm bit.	When initially removing power window (3). Fasten power window (3) to door module (1) with new rivets (2). Pliers
3.2	Cut rivet heads out of rivets (2).	When repeatedly removing power window (3).
			Figure
		Fasten power window (3) to door module (1) with new rivets (2). Pliers	Figure
4	Remove power window (3) from door module (1).
5	Install in the reverse order
