Remove/install crank window in front door - AR72.10-P-1900SX
MODEL 221.0
MODEL 221.1 except CODE (Z07) Top protection
Shown on model 221.0
| Removing | |||
| Risk of injury due to hands being crushed when window glass is not secure | Secure window to prevent it from falling down. | AS67.00-Z-0002-01A | |
| 1 | Remove door lining from left or right front door | AR72.10-P-1000SX | |
| 2 | Remove covers (3) from access openings. | ||
| 3 | Switch on ignition and move crank window (1) up until bolts (4) are accessible. | ||
| 4 | Disconnect connector from left front door control unit or right front door control unit and remove door lining from working area. | AR72.10-P-1000SX | |
| 5 | Remove bolts (4) | ||

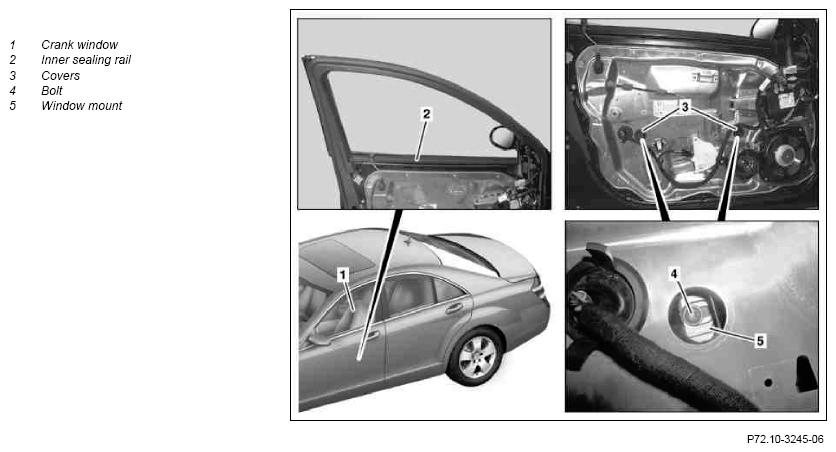

| 6 | Remove inner sealing rail (2) | Figure | |
| 7 | Mask inner edge of window channel to protect crank window (1). | ||
| 8 | Remove crank window (1) from window channel in front door | ||
| Install | |||
| 9 | Insert crank window (1) into window channel of front door | ||
| 10 | Remove adhesive tape from window channel of crank window (1). | ||
| 11 | Screw bolts (4) into front and rear window mount (5). | ||
| 12 | Install inner sealing rail (2) | ||
| 13 | Connect connector with left front door control unit or right front door control unit | AR72.10-P-1000SX | |
| 14 | Switch on ignition and move crank window (1) upward to stop | ||
| 15 | Move crank window (1) down until bolts (4) are accessible | ||
| 16 | Tighten bolts (4) | *BA72.10-P-1012-01Q | |
| 17 | Install covers (3) | ||
| 18 | Install door lining in front door | AR72.10-P-1000SX |
FRONT DOOR
| Number | Designation | Model 221 | |
|---|---|---|---|
| BA72.10-P-1012-01Q | Bolt, window to front power window | Nm | 8 |
