Remove/install armrest on front door - AR72.10-P-1033SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

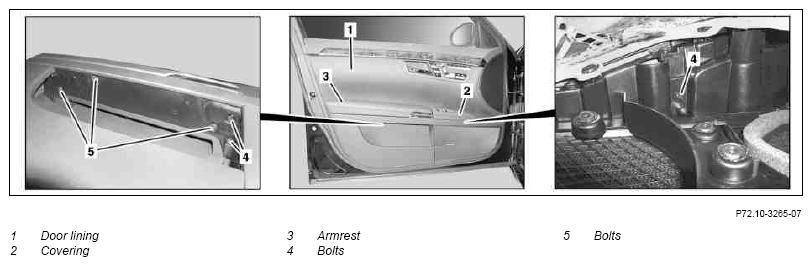

Fig 1: Identifying Front Door Armrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining (1) from front door	Lay door lining (1) front side down on suitable subsurface to prevent damage	AR72.10-P-1000SX
2	Unscrew screws (4) on covering (2)
3	Unscrew bolts (5) from armrest (3).
4	Raise cover (2) and remove armrest (3).
5	Install in the reverse order
