Removing and installing fiber optic cable - AR82.70-P-0004MC
MODEL 215, 220 Between COMAND or radio/right rear seat
Illustrated on model 220

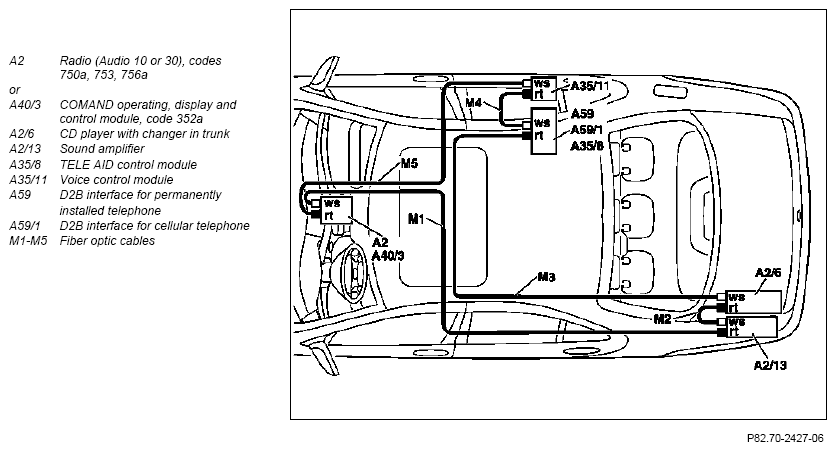

Removing fiber optic cable M5
| Removal, installation | |||
| Notes on fiber optic cables | |||
| 1 | Disconnect ground lead from battery | ||
| 2.1 | Remove radio | Model 215 | AR82.60-P-7502N |
| Model 220 | AR82.60-P-7502I | ||
| 2.2 | Remove operating, display and control module | Model 215 with code 352a | AR82.85-P-7472N |
| Model 220 with code 352a | AR82.85-P-7472I | ||
| 3 | Remove floor cover in rear | Model 215 | AR68.20-P-4800N |
| Model 220 | |||
| 4 | Open right wiring duct | ||
| 5.1 | Remove seat adjustment device | Model 220 with bucket seats (code 401) |
|
| 6 | Remove installation plate from floor | ||
| 7 | Cover fiber optic cable | AR82.95-P-0005-01A | |
| 8 | Leave fiber optic cable module disconnected | AR82.70-P-0004-01A | |
| 9 | Install in opposite order | ||
| 10 | Start up and check for proper function |
