Remove/install radio - AR82.60-P-7502I
MODEL 220 up to 31.8.02 with CODE (750a) MB radio Audio 30 RDS with CODE (753) MB radio Audio 30 RDS with CODE (756a) MB radio Audio 10 RDS with CD compartment
| Remove/Install | |||
| 1 | Connect no load current retention unit | AR54.10-P-1030-07I | |
| CMP 12.2 quiescent current retention unit | *WH58.30-Z-1012-09A | ||
| Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground. Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. |
||
| 2 | Disconnect ground cable of battery | ||
| Notes on battery | |||
| Notes on AGM battery | Model 220.028 with CODE (450) Taxi version. Models 220.070/075/175/178/875/878 as of 1.1.01. | ||

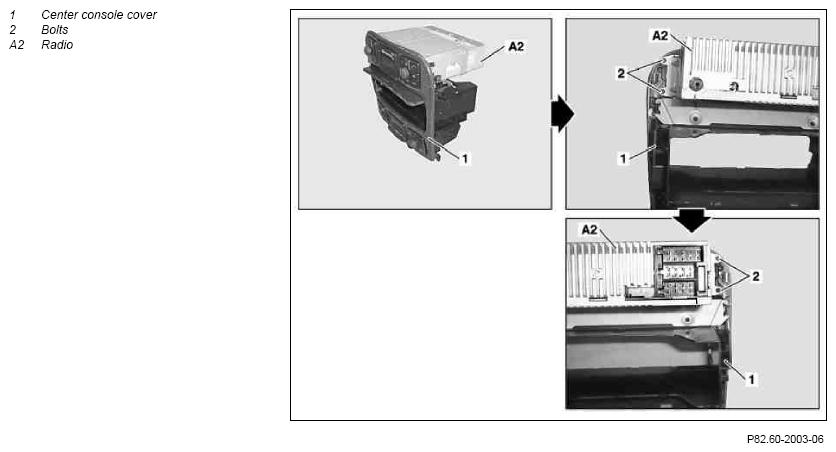

| 3 | Remove center console cover (1) | ||
| 4 | Undo screws (2) and remove radio (A2) from the center console covering | ||
| 5 | Install in the reverse order | ||
| 6 | Test for proper operation |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
