Remove/install wiper system - AR82.30-P-6400M

MODEL 220, 215

Shows model 220

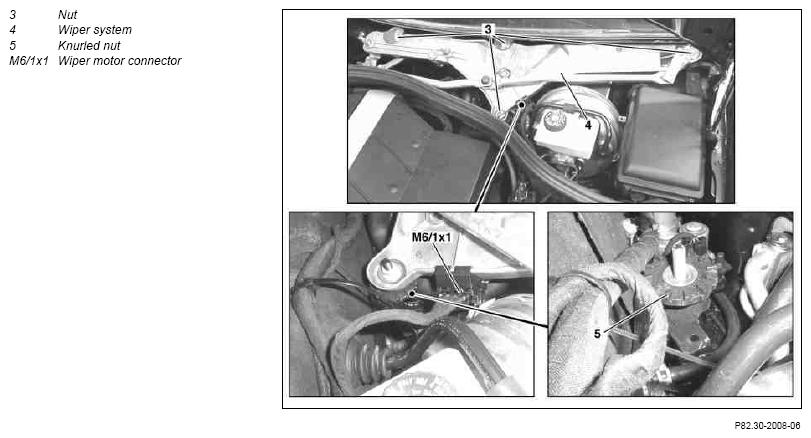

Fig 1: Identifying Wiper System Remove/Install Components - Shown On Model 220

Courtesy of MERCEDES-BENZ USA

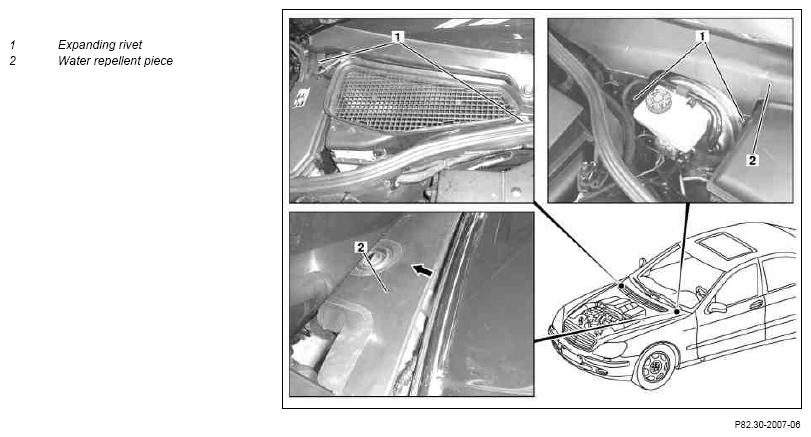

Fig 2: Identifying Wiper System Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	Injury Hazard!  Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities	Always remove ignition key when working on windshield wiper mechanism
1	Remove wiper arms		AR82.30-P-6100M
2	Remove 4 expansion rivets (1)
3	Remove water repellent (2) upward out of fold (arrow)
4	Unscrew 4 nuts (3)	Do not twist knurled nut (5), otherwise the incline angle of the wiper system is changed
5	Disconnect connector (M6/1x1) at wiper motor
6	Remove wiper system (4)
	Install
7	Insert wiper system (4)
8	Screw in 4 nuts (3)		*BA82.30-P-1005-01A
9	Move wiper motor to parked position		AR82.30-P-6800-01E
10	Install water repellent (2)
11	Install wiper arms		AR82.30-P-6100M
12	Check operation of windshield wipers

WINDSHIELD WIPER

Number	Designation		Model 215	Model 220
BA82.30-P-1005-01A	Nut, wiper system	Nm	20	20
