Remove and install wiper arm - AR82.30-P-6100M

MODEL 220, 215

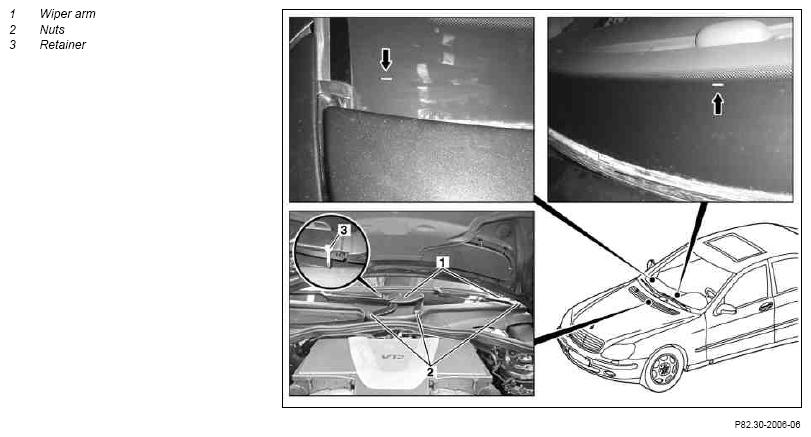

Fig 1: Identifying Wiper Arm Remove/Install Components

G10112400

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities	Always remove ignition key when working on windshield wiper mechanism.
1	Move wiper system to parked position		AR82.30-P-6800-01E
2	Open engine hood and move to vertical position
3	Unscrew nuts (2)		*BA82.30-P-1004-01A
4	Remove wiper arm (1)	The wiper blade must rest directly on the mark (arrow) in the silk screen print of the windshield On model 215, 220 as of the use of aero wipers, the retainer (3) is to be removed with the use of new wiper blades.
5	Install in the reverse order
6	Check operation of windshield wipers

WINDSHIELD WIPER

Number	Designation		Model 215	Model 220
BA82.30-P-1004-01A	Nut on wiper arm	Nm	33	33
