Remove/install wiper motor - AR82.30-P-6800M
MODEL 220, 215

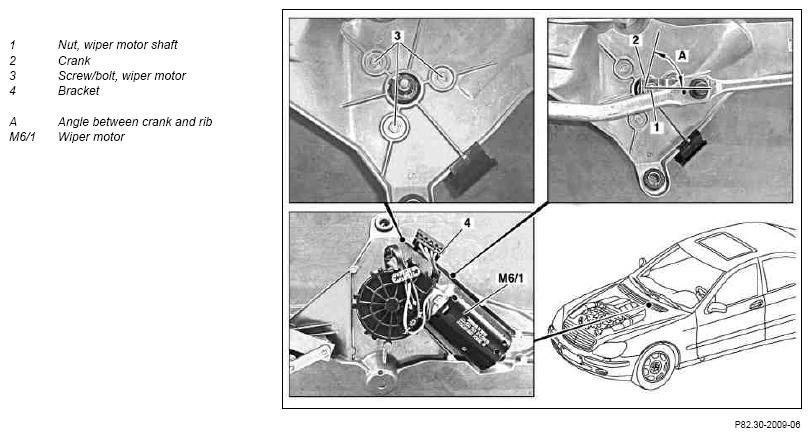

Shows model 220
| Removing | |||
| Injury Hazard! Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities | Always remove ignition key when working on windshield wiper mechanism. | ||
| 1 | Open engine hood and move to vertical position | ||
| 2 | Remove wiper system | AR82.30-P-6400M | |
| 3 | Unscrew nut of wiper motor shaft (1) | ||
| 4 | Pull off crank (2) with wiper linkage | ||
| 5 | Unclip connector at bracket (4) | ||
| 6 | Remove screws/bolts at wiper motor (3) | ||
| 7 | Remove wiper motor (M6/1) | ||
| Install | |||
| 8 | Move wiper motor (M6/1) to parked position | AR82.30-P-6800-01E | |
| 9 | Insert wiper motor (M6/1) | ||
| 10 | Screw in wiper motor (3) screws/bolts | *BA82.30-P-1001-01A | |
| 11 | Unclip connector at bracket (4) | ||
| 12 | Align crank (2) in angle (A) to top rib of wiper motor bracket | *BE82.30-P-1001-01C | |
| 13 | Turn nut on wiper motor shaft (1) | *BA82.30-P-1002-01A | |
| 14 | Install wiper system | AR82.30-P-6400M | |
| 15 | Close engine hood | ||
| 16 | Check operation of windshield wipers |
TEST AND ADJUSTMENT VALUES FOR WINDSHIELD WIPER
| Number | Designation | Model 215, 220 | ||
|---|---|---|---|---|
| BE82.30-P-1001-01C | Dimension | Angle "A" between crank and rib | ∠° | 74 |
| See picture | AR82.30-P-6800M | |||
WINDSHIELD WIPER
| Number | Designation | Model 215 | Model 220 | |
|---|---|---|---|---|
| BA82.30-P-1001-01A | Bolt on wiper motor mount | Nm | 9 | 9 |
| BA82.30-P-1002-01A | Nut on wiper motor shaft | Nm | 19 | 19 |
