Remove/install rear dome lamp - AR82.20-P-0113SX

MODEL 221.0/1

Shown on model 221.1 with code (413) Panoramic sliding roof

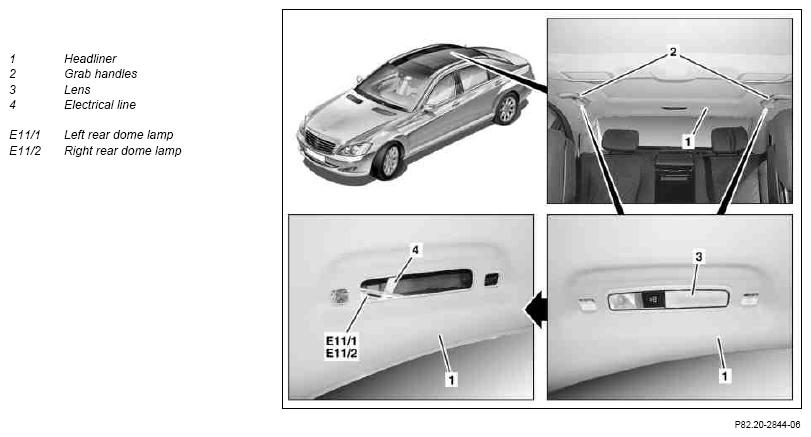

Fig 1: Identifying Rear Dome Lamp Remove/Install Components - Shown On Model 221.1

G10128868

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove grab handles (2) at left rear or right rear from headliner (1)
2	Unclip lens (3)	Unclip lens (3) uniformly using a suitable screwdriver, as otherwise the lens (3) may be damaged.
3	Undo headliner (1) in area of left rear dome lamp (E11/1) or right rear dome lamp (E11/2) to render the left rear dome lamp (E11/1) or right rear dome lamp (E11/2) accessible	Pull headliner (1) down carefully, as otherwise the headliner (1) may be damaged.
		Vehicles without code (Z07) Top protection	AR68.30-P-4300SX
		Vehicles with code (Z07) Top protection	AR68.30-P-4300SXS
4	Detach the electrical line (4) from the left rear dome lamp (E11/1) or right rear dome lamp (E11/2) and remove left rear dome lamp (E11/1) or right rear dome lamp (E11/2)
5	Install in the reverse order
