Remove/install lamp lens - AR82.10-P-1820M

MODEL 220

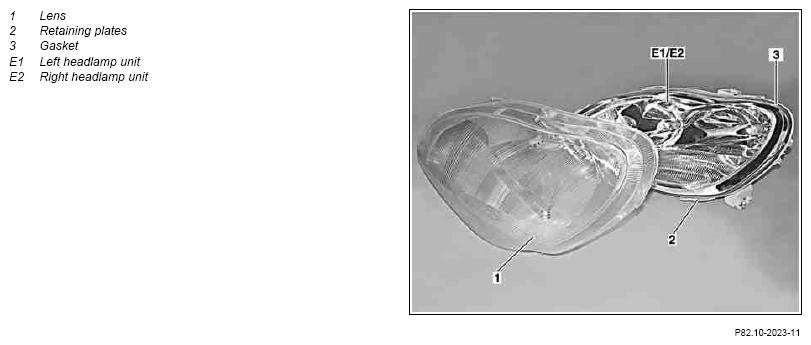

Fig 1: Identifying Lamp Lens Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove, Install
1	Remove/install headlamp unit		AR82.10-P-4730M
2	Lift catch (2) on headlamp assembly left, right (E1, E2) and remove lens (1)	Check seal (3). Lens (1) must be heard to latch into all catches
3	Install in the reverse order
