Remove/install headlamp unit - AR82.10-P-4730M

MODEL 220 except CODE (612b) Xenon headlamp unit except CODE (614) Bi-xenon headlamp unit

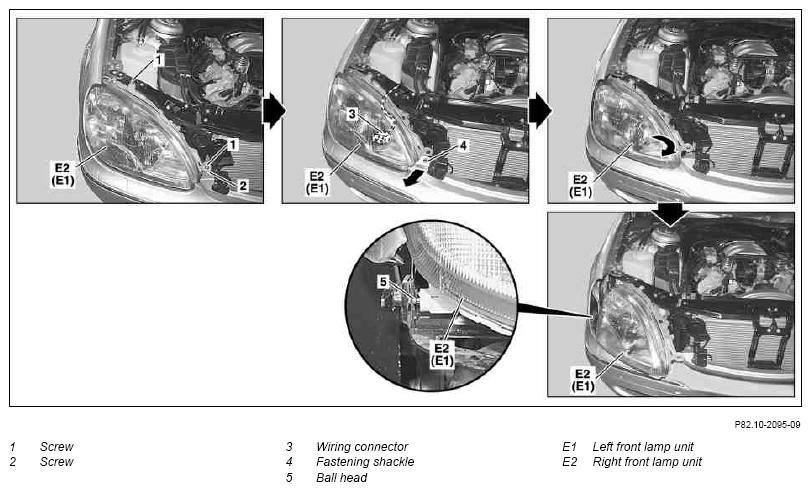

Fig 1: Identifying Headlamp Unit Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Open engine hood and move to upright position
2	Remove bolts (1, 2)
3	Unclip electrical connection (3) and remove
4	Remove left front lamp unit (E1), right front lamp unit (E2)	Protect against paint damage on bumper and fender. Fold fastening shackle (4) of bumper forward slightly (arrow) and remove left front lamp unit (E1), right front lamp unit (E2) towards vehicle center. Ensure that the ball head (5) on the housing of the left front lamp unit (E1), right front lamp unit (E2) is seated in its mount.
5	Install in the reverse order
	Check
6	Check settings of headlamps, correct if necessary
	Check and correct headlamp setting
