Remove/install fax machine - AR82.80-P-0100SXS

MODEL 221.1 with CODE (Z07) Top protection Possio PM70 fax machine

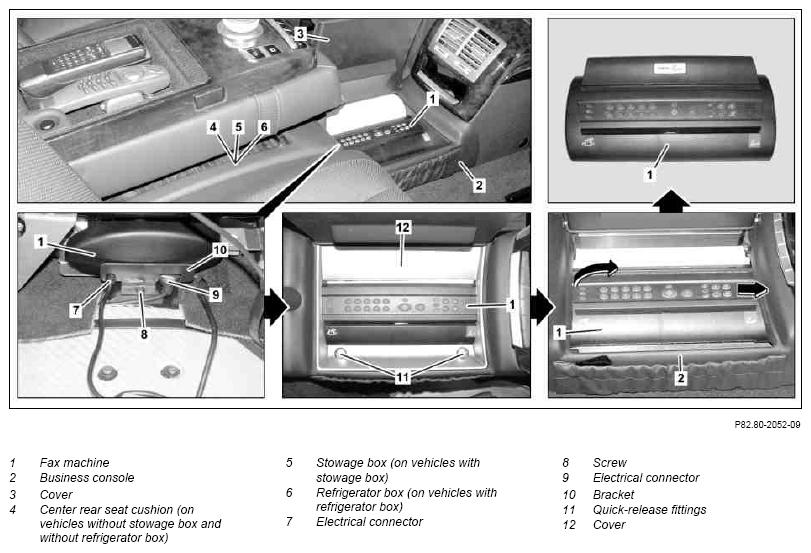

Fig 1: Identifying Fax Machine Remove/Install Components - Shown On Vehicle With Stowage Box

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with stowage box

Fig 2: Identifying Fax Machine Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove center rear seat cushion (4)	On vehicles without stowage box (5) and without refrigerator box (6)	AR91.12-P-1020SZ
1.2	Remove stowage box (5) between the rear seat cushions	On vehicles with stowage box (5) The removal of the center rear seat cushion is also representative for the removal of the stowage box (5).	AR91.12-P-1020SZ
1.3	Unclip refrigerator box (6) and lift at the front with refrigerant lines still connected	On vehicles with refrigerator box (6) Do not remove left rear seat backrest. Lift refrigerator box (6) until the bracket (10) is accessible.	AR86.61-P-1010SXS
2	Remove bolt (8) and remove bracket (10)
3	Disconnect electrical connectors (7, 9)
4	Open cover (3) of business console (2)
5	Turn quick-release couplings (11) 90° counterclockwise
6	Take off cover (12)

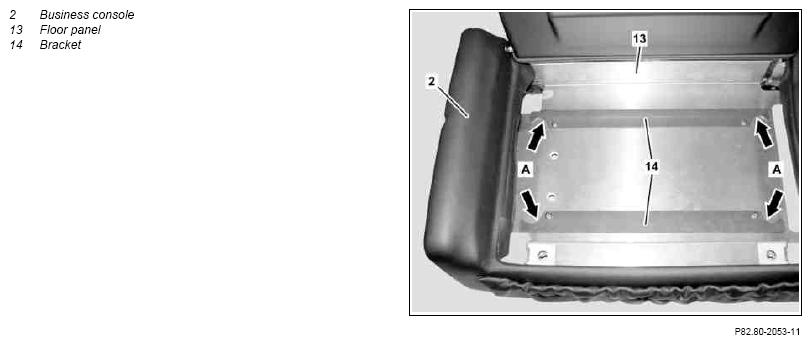

7	Lift fax machine (1) out of the cutouts (arrows A) in the brackets (14), then push to the front and lift fax machine (1) out of the business console (2) starting from the rear	Ensure that the fax machine (1) is seated correctly in the cutouts (arrows A) of the brackets (14) on the floor panel (13).
8	Install in the reverse order
