Removing and installing keyless go antenna - AR82.62-P-8000CX
MODEL 204.9 with CODE 889 (Keyless Go)
Interior Keyless Go antenna
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove automatic air conditioning control and operating unit | Model 204.9 up to model year 2013 | AR83.40-P-6350CW |
| Model 204.9 as of model year 2013 | AR83.40-P-6350CYA | ||

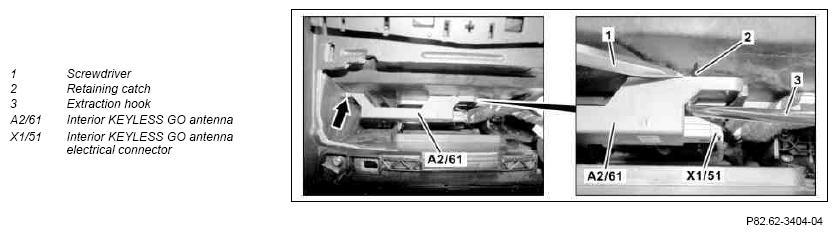

| 2 | Release interior KEYLESS-GO antenna (A261) with a suitable screwdriver (1) at retaining catch (2) and pull out with extraction hook (3) | ||
| Figure | |||
| 3 | Disconnect interior KEYLESS-GO antenna electrical connector (X151) | ||
| 4 | Install in the reverse order |
