Remove/install rear window wiper motor - AR82.30-P-6900CX
MODEL 204.2/9
MODEL 218.9

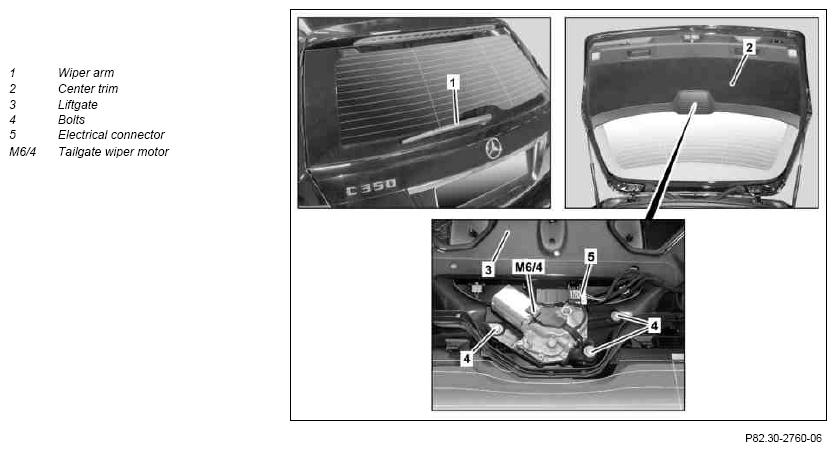

Shown on model 204.2
| Remove/install | |||
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| 1 | Remove windshield wiper arm (1) | AR82.30-P-6910CX | |
| 2 | Remove center paneling (2) from liftgate (3) | MODEL 204.2/9, 218.9 | |
| MODEL 204.2 | AR72.20-P-3520CX | ||
| MODEL 204.9 | AR72.20-P-3520CY | ||
| 3 | Remove screws/bolts (4) | ||
| 4 | Disconnect electrical connector (5) and remove liftgate wiper motor (M6/4) | ||
| 5 | Install in the reverse order |
