Remove/install liftgate liner - AR72.20-P-3520CY

MODEL 204.9

Shown with code (890) EASY-PACK liftgate

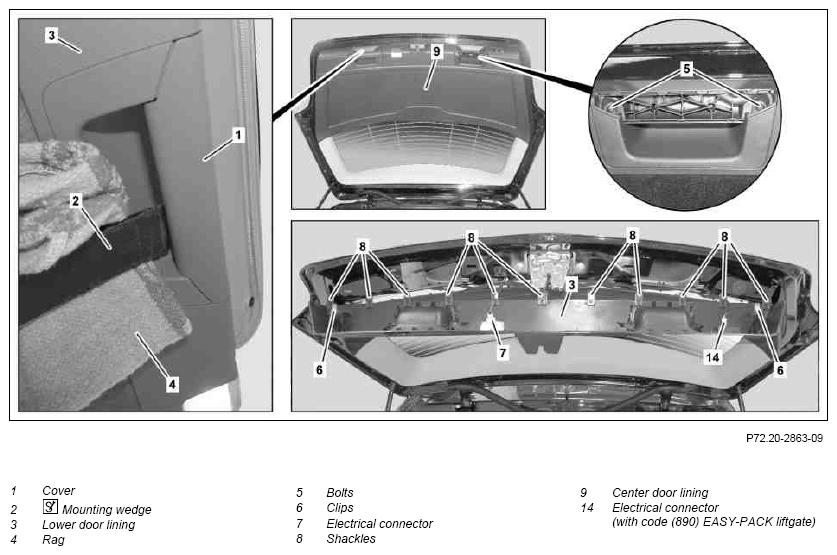

Fig 1: Identifying Liftgate Liner Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown with code (890) EASY-PACK liftgate

Fig 2: Identifying Liftgate Liner Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip covers (1) at front from lower door lining (3) using assembly wedge (2).	Tap against assembly wedge (2) to loosen covers; do not unclip covers (1) by twisting assembly wedge (2). Place rag (4) over assembly wedge (2) to protect lower door lining (3). Otherwise the covers (1) and the lower door lining (3) can be damaged.
1			Figure
2	Remove bolts (5)	Cordless drill/driver
3	Unclip lower door lining (3) from clamps (6) and remove until electrical connectors (7, 14) are accessible	Electrical connector (14) only with code (890) EASY-PACK liftgate. ensure that all shackles (8) are located behind center door lining (9).
4	Disconnect electrical connectors (7, 14)	Electrical connector (14) only with code (890) EASY-PACK liftgate. If only the center door lining (9) is removed, allow lower door lining (3) to hang down with electrical lines connected.
5	Loosen center door lining (9) from window frame on rear-end door (13) with assembly wedge (2)	Only loosen door lining on window frame from rear-end door (13).
5			Figure
6	Unclip clips (10) from center door lining (9) on rear-end door (13)		Figure
7	Unhook center door lining (9) from shackles (11)	Hook center door lining (9) first into both shackles (11).
8	Install in the reverse order

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
