Remove/install liftgate spray nozzle - AR82.35-P-6920CY

MODEL 204.9

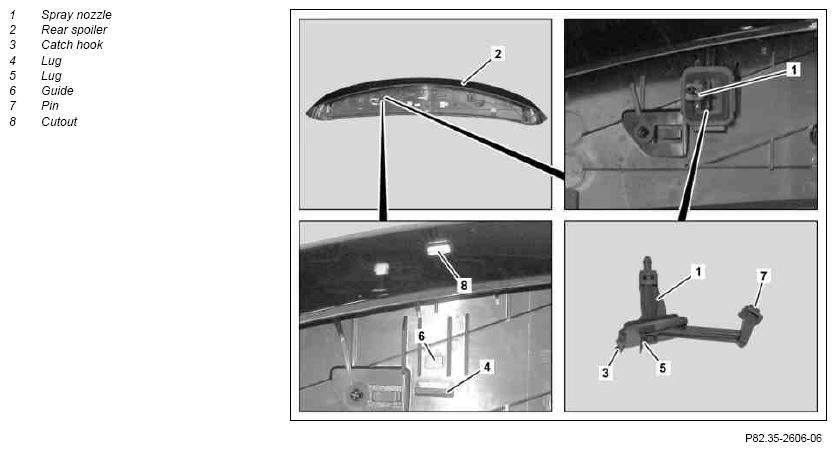

Fig 1: Identifying Liftgate Spray Nozzle Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear spoiler (2)		AR88.30-P-0500CY
2	Unclip catch hook (3) of spray nozzle (1) from clip (4) at rear spoiler (2)	Unclip catch hook (3) carefully, as catch hook (3) may break.
3	Extend clip (5) from guide (6)
4	Extend pin (7) from notch (8)
5	Remove spray nozzle (1)
6	Install in the reverse order
