Remove/Install Rear Spoiler - AR88.30-P-0500CY

MODEL 204.9

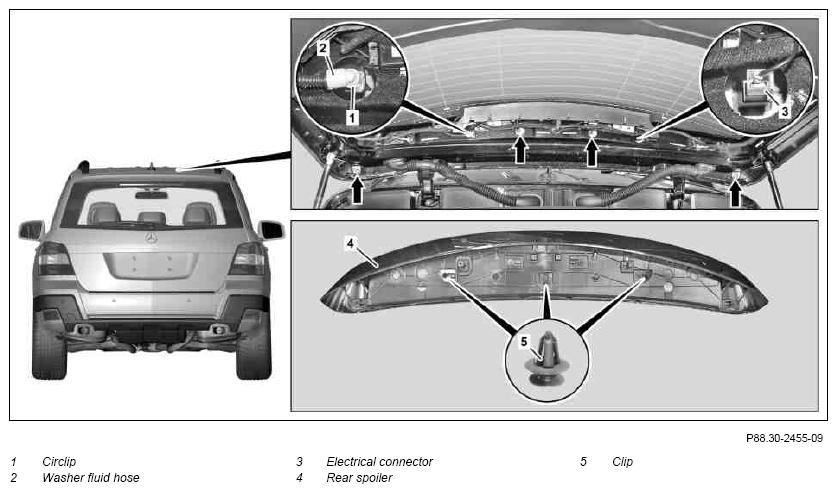

Fig 1: Identifying Rear Spoiler Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove inner door panel from window frame on rear-end door		AR72.20-P-6616CW
2	Unlock retaining ring (1) on washer fluid hose (2) and pull off washer fluid hose (2)	Plug washer fluid hose (2) with suitable protective cap.
3	Disconnect electrical connector (3) from rear spoiler (4)
4	Unscrew nut on rear spoiler (4) (arrow)	Rechargeable drill/screwdriver
5	Close rear-end door
6	Unclip rear spoiler (4) and remove upward from rear-end door	Ensure that clips (5) are seated correctly.
7	Install in the reverse order
