Remove/install license plate lamps - AR82.10-P-5161CX
MODEL 204.2/9

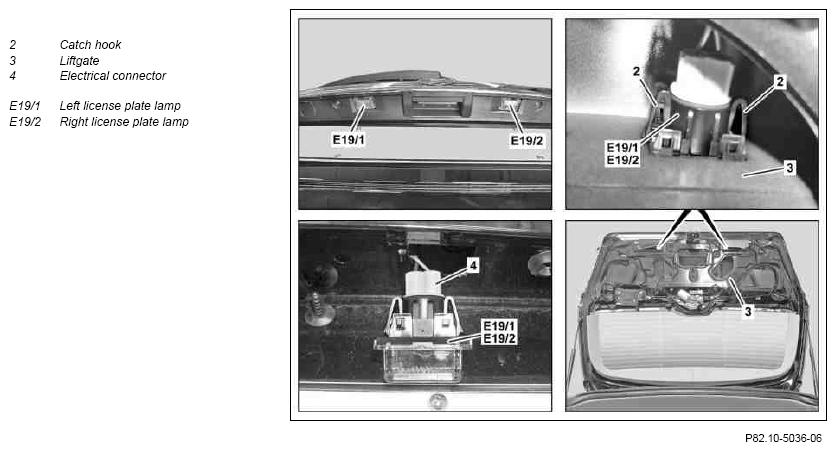

Shown on model 204.2
| Remove/install | |||
| 1.1 | Remove handle strip | Model 204.2 | AR72.20-P-3650CX |
| 1.2 | Remove center door lining from rear-end door | Model 204.9 | AR72.20-P-3520CY |
| 2 | Compress catch hook (2) and unclip left license plate lamp (E19/1) and right license plate lamp (E19/2) out of liftgate (3) from inside to outside | ||
| 3 | Disconnect electrical connector (4) and remove left license plate lamp (E19/1) or right license plate lamp (E19/2) | ||
| 4 | Install in the reverse order |
