Remove/install left/right rear window antenna amplifier - AR82.62-P-8382CY
MODEL 204.9
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

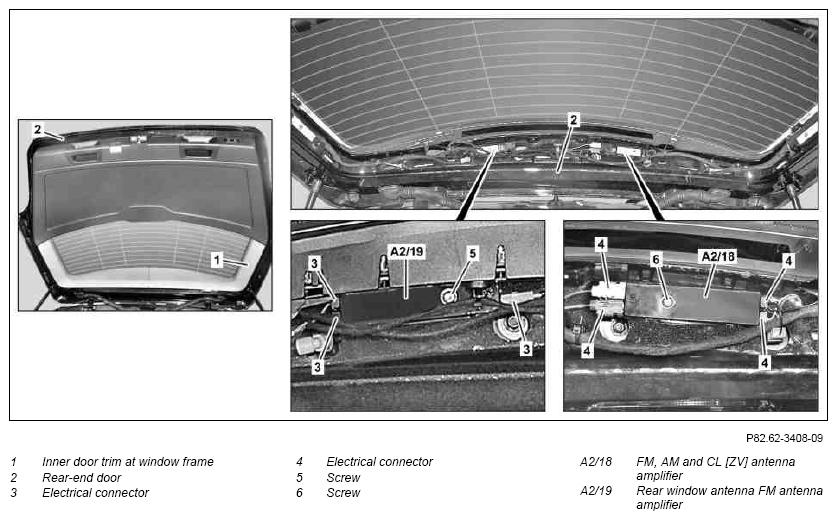

| 1 | Remove inner door trim at window frame (1) of rear-end door (2) | AR72.20-P-6616CW | |
| 2 | Disconnect electrical connectors (3) or electrical connectors (4) | ||
| 3 | Remove screw/bolt (5) or screw/bolt (6) and remove FM, AM and CL [ZV] antenna amplifier (A2/18) or rear window FM antenna amplifier (A2/19) | ||
| 4 | Install in the reverse order |
