Remove, install inner door lining on rear door window frame - AR72.20-P-6616CW

MODEL 204.2/9

Shown on model 204.2

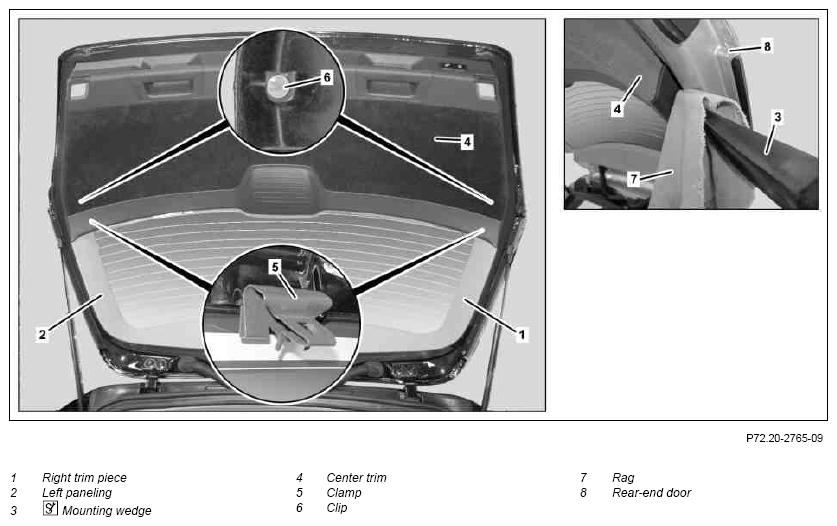

Fig 1: Identifying Inner Door Lining On Rear Door Window Frame Remove/Install Components - Shown On Model 204.2

Courtesy of MERCEDES-BENZ USA

Shown on model 204.2

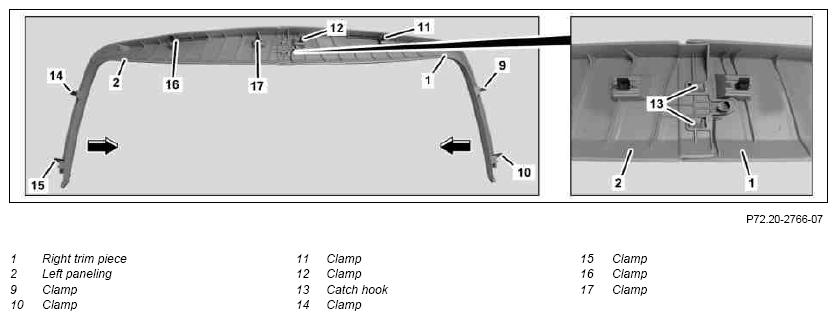

Fig 2: Identifying Inner Door Lining On Rear Door Window Frame Remove/Install Components - Shown On Model 204.2

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip center paneling (4) from rear-end door (8) with assembly wedge (3)	Lay rag (7) over assembly wedge (3) to prevent paint damage on rear-end door (8) Ensure that clips (6) are seated correctly in center paneling (4)
			Figure
2	Remove center paneling (4) from clips (5)	Model 204.2
3	Unclip clamp (10) with right paneling (1) from window frame in direction of arrow	Always maintain sequence when unclipping right paneling (1) and left paneling (2). Otherwise the fasteners on the right paneling (1) or left paneling (2) can be damaged.
			Figure
4	Unclip clamp (9) with right paneling (1) from window frame in direction of arrow		Figure
5	Unclip clamp (11) with right paneling (1) from window frame in direction of arrow	Ensure that paint is not damaged when unclipping the clamp (11).
			Figure
6	Unclip clamp (12) with right paneling (1) from window frame in direction of arrow	Ensure that paint is not damaged when unclipping the clamp (12).
			Figure
7	Unclip right paneling (1) on catch hooks (13) from left paneling (2) and remove		Figure
8	Unclip clamp (15) with left paneling (2) from window frame in direction of arrow		Figure
9	Unclip clamp (14) with left paneling (2) from window frame in direction of arrow		Figure
10	Unclip clamp (16) with left paneling (2) from window frame in direction of arrow	Ensure that paint is not damaged when unclipping the clamp (16).
			Figure
11	Unclip clamp (17) with left paneling (2) from window frame in direction of arrow	Ensure that paint is not damaged when unclipping the clamp (17).
			Figure
12	Install in the reverse order	Always maintain sequence when clipping in right paneling (1) or left paneling (2). Otherwise the fasteners on the right paneling (1) or left paneling (2) can be damaged.

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
