Remove/install control unit for TELE AID emergency call system - AR82.95-P-0005CY
MODEL 204.9 with CODE (359) TELE AID emergency call system with CODE (494) USA version
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove load compartment floor | AR68.80-P-5800CY | |

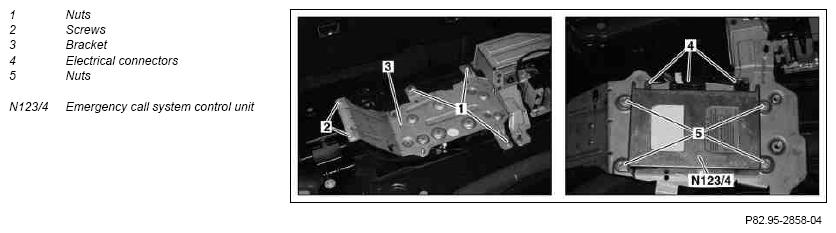

| 2 | Unscrew nuts (1). | ||
| 3 | Remove bolts (2) | ||
| 4 | Rotate bracket (3) | ||
| 5 | Separate electrical connectors (4) | ||
| 6 | Unscrew nuts (5). | ||
| 7 | Remove emergency call system control unit (N123/4) | ||
| 8 | Install in the reverse order |
