Remove/install blocking circuit of rear window antenna - AR82.62-P-7200CY
MODEL 204.9
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

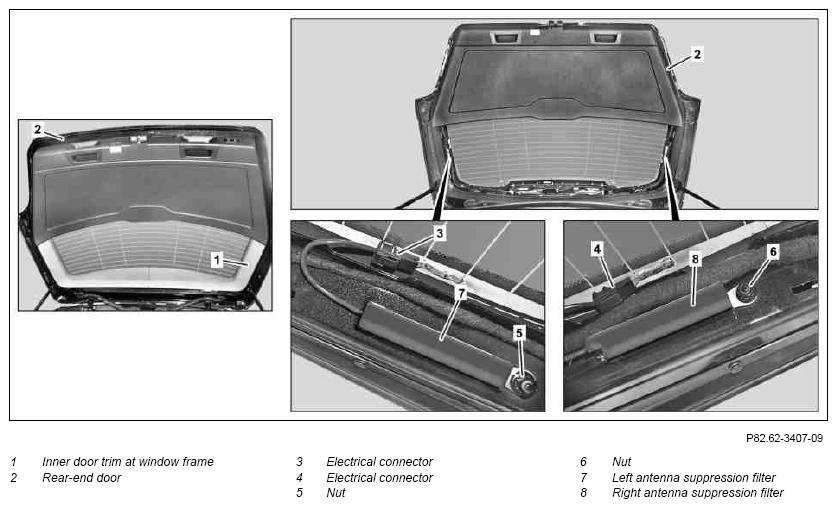

| 1 | Remove inner door trim at window frame (1) of rear-end door (2) | AR72.20-P-6616CW | |
| 2 | Remove electrical connector (3) or electrical connector (4) | ||
| 3 | Unscrew nut (5) or nut (6) and remove left antenna suppression filter (7) or right antenna suppression filter (8) | ||
| 4 | Install in the reverse order |
