Remove/install antenna splitter - AR82.70-P-8953CY
MODEL 204.9 with CODE (359) TELE AID emergency call system with CODE (512) COMAND APS with DVD changer with CODE (494) USA version
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Remove load compartment floor | AR68.80-P-5800CY | |
| 2 | Separate electrical connectors (1) | ||

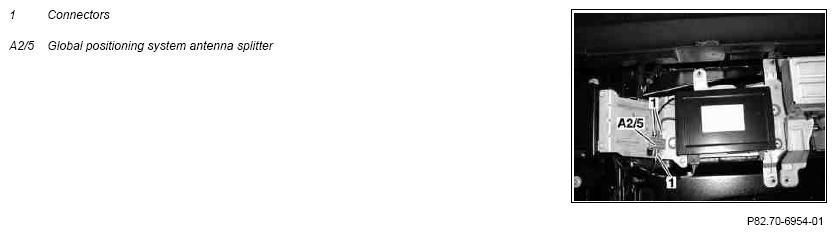

| 3 | Remove Global Positioning System antenna splitter (A2/5) | ||
| 4 | Install in the reverse order |
