Retrofit illuminated door sill molding - AZ82.20-P-0001CY
MODEL 204.9## 1# up to 7/30/12
| Remove | |||
| Risk of death caused by contact with parts conducting high voltages. | Do not touch live parts. Persons who carry electronic implants (e.g. cardiac pacemakers) must not perform any work on these components. | AS00.00-Z-0020-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Move front seats forward and up | ||
| 2 | Loosen two rear screws/bolts at front seats | ||
| 3 | Move front seats toward rear | ||
| 4 | Remove front two screws/bolts at front seats | ||
| 5 | Remove front door sills | ||
| 6 | Remove paneling at bottom of left and right A-pillar | ||
| 7 | Remove accelerator pedal | ||
| AR30.12-P-1321CW | |||
| 8 | Remove driver-side floor covering and passenger-side floor covering | ||

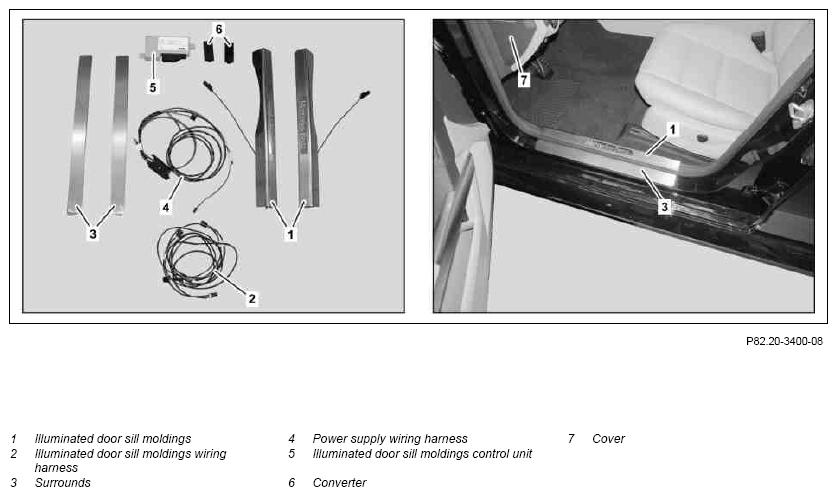

| 9 | Unclip cover (7) and remove | ||
| 10 | Disconnect ground line of battery | ||
| AR54.10-P-0003CW | |||
| 11 | Detach left front SAM control unit with fuse and relay box and place to one side with lines connected | In vehicles as of 2.6.09 | |
| AR54.21-P-1260CW | |||
| Install | |||
| 12.1 | Retrofit illuminated door sill molding wiring harness (2) and power supply wiring harness (4) with illuminated door sill molding control unit (5) and converter (6) | MODEL 204.9## 1# Vehicles up to 1.6.09 with interior fuse box | |
| Notes on crimping | AH00.19-P-1000-09A | ||
| AZ82.20-P-0001-04CYA | |||
| Fig 2 | |||
| 12.2 | Retrofit illuminated door sill molding wiring harness (2) and power supply wiring harness (4) with illuminated door sill molding control unit (5) and converter (6) | Vehicles as of 2.6.09 without interior fuse box | |
| Notes on crimping | AH00.19-P-1000-09A | ||
| AZ82.20-P-0001-04CYB | |||
| Fig 2 | |||
| 13.1 | Connect power supply wiring harness (4) | Vehicles up to 1.6.09 with interior fuse box | |
| AZ82.20-P-0001-02CY | |||
| 13.2 | Connect power supply wiring harness (4) | MODEL 204.9## 1# Vehicles as of 2.6.09 without interior fuse box | |
| AZ82.20-P-0001-02CZ | |||
| 14 | Install cover (7) | ||
| 15 | Install left front SAM control unit with fuse and relay box | In vehicles as of 2.6.09 | |
| AR54.21-P-1260CW | |||
| 16 | Install driver-side floor covering and passenger-side floor covering, in the process routing illuminated door sill molding wiring harness (2) upwards between driver-side floor covering or passenger-side floor covering and longitudinal member | ||
| 17 | Install accelerator pedal | ||
| AR30.12-P-1321CW | |||
| 18 | Install paneling at bottom of left and right A-pillar | ||
| 19 | Install illuminated door sill moldings (1) | AZ82.20-P-0001-01CY | |
| 20 | Remove protective foil from panels (3) and glue down panels (3) in vicinity of illuminated door sill moldings (1) as shown | Ensure that panels (3) do not slip. Otherwise the vehicle paintwork may be damaged. |
|
| 21 | Connect ground cable to battery | ||
| AR54.10-P-0003CW | |||
| 22 | Screw in screws/bolts at front seats | ||
| BA91.10-P-1002-01Q | |||
| 23 | Perform function test of illuminated door sill moldings (1) |
FRONT SEATS
| Number | Designation | MODEL 204 | |
|---|---|---|---|
| BA91.10-P-1002-01Q | Screw/bolt, seat to vehicle floor | Nm | 50 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG98 (siehe EPC) | Interior compartment equipment | 1 |
