Remove/Install Accelerator Pedal - AR30.12-P-1321CW

MODEL 172, 204, 207

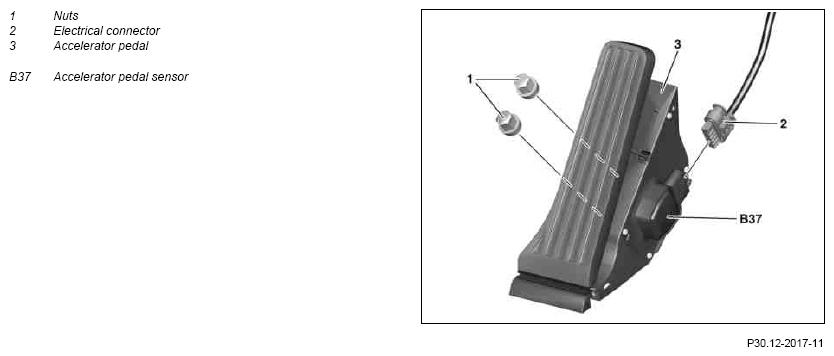

Fig 1: Identifying Accelerator Pedal Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Bring driver seat into the rearmost seat position
2	Unscrew nuts (1)
3	Unplug electrical connector (2) at accelerator pedal sensor (B37)
4	Take out accelerator pedal (3)	The accelerator pedal (3) must not be disassembled. Otherwise, it will be damaged.
5	Install in the reverse order
