Retrofit additional fan for COMAND - AN82.85-P-0005CYA
MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 510 (Audio 20 incl. CD changer) without CODE 494 (US version) without CODE 498 (Japanese version)
MODEL 204.9## 1# as of 7/31/12 as of model year 2013 with CODE 523 (MB Audio 20 radio) without CODE 494 (US version) without CODE 498 (Japanese version)
| Remove | |||
| 1 | Remove radio (A2) | ||
| AR82.60-P-7502CY | |||
| 2 | Remove glove box | ||
| AR68.10-P-1200CY | |||
| Install | |||

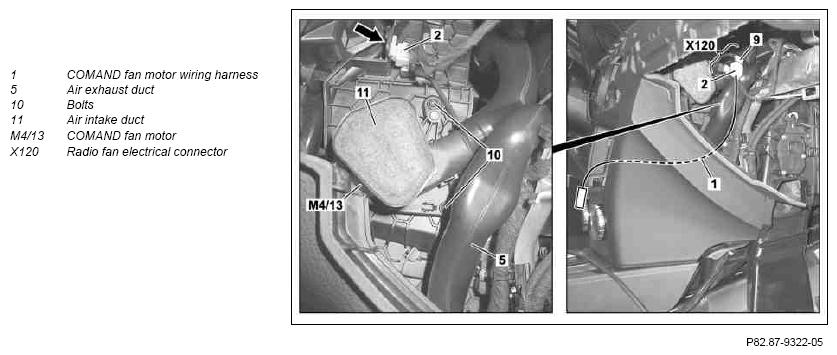

| 3 | Insert air exhaust duct (5) through opening in area of glove box and clip into slot of removed audio equipment at side | ||
| 4 | Position COMAND fan motor (M4/13) at air conditioner housing (A32) | ||
| 5 | Attach air exhaust duct (5) to COMAND fan motor (M4/13) | ||
| 6 | Tighten screw/bolts (10) | ||
| 7 | Connect radio fan electrical connector (X120) | ||
| 8 | Install air intake duct (11) at COMAND fan motor (M4/13) | ||
| 9 | Install glove box | ||
| AR68.10-P-1200CY | |||

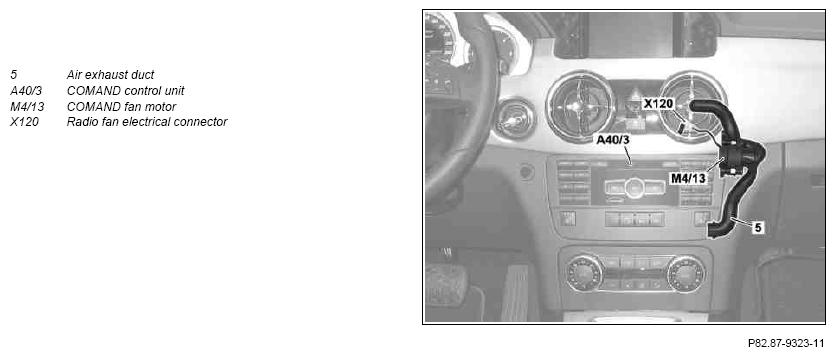

| 10 | Install COMAND controller unit (A40/3) | ||
| AR82.60-P-7502CY |
