Retrofit InCar Hotspot - AZ82.80-P-0002CY

MODEL 204.9 up to 7/30/12 with CODE 386 (Convenience telephony) with CODE 511 (Audio 50 APS with DVD changer) with CODE 512 (COMAND APS with DVD changer) with CODE 525 (MB Audio 50 APS radio) with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 460 (Canada version) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 830 (China version)

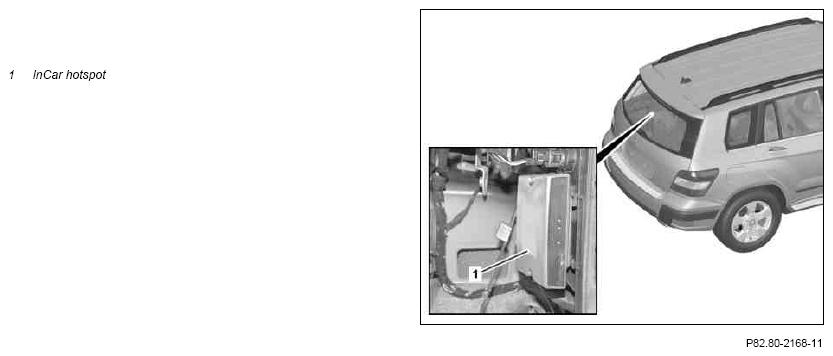

Fig 1: Identifying InCar Hotspot

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit	KEYLESS-GO start/stop button only on vehicles with code (889) Keyless-Go.
2	Remove cover of load compartment interior trim on right side
3	Detach load compartment interior trim on left side
			AR68.30-P-1180CY
4	Remove rear seat cushion
			AR91.12-P-1020CW
5	Loosen center console in rear area
			AR68.20-P-2000CW
6	Release rear SAM control unit with fuse and relay module
			AR54.21-P-1258CY
		Only release rear SAM control unit with fuse and relay module, do not disconnect electrical connections.
	Install
7	Retrofit wiring harness of InCar Hotspot (1)		AZ82.80-P-0002-01CY
		Wiring harness repair kit	Figure
8	Retrofit InCar Hotspot (1) with holder		AZ82.80-P-0002-02CY
9	Secure rear SAM control unit with fuse and relay module
			AR54.21-P-1258CY
10	Fasten center console in rear area
			AR68.20-P-2000CW
11	Fasten load compartment interior trim on left side
			AR68.30-P-1180CY
12	Install cover of load compartment interior trim on right side
13	Install rear seat cushion
			AR91.12-P-1020CW
14	Perform function test of InCar Hotspot (1)	See operator's manual for InCar Hotspot (1).
15	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach "InCar Hotspot retrofitted in accordance with AZ82.80-P-0002CY " note under field organization texts to DG 82.

Fig 2: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
