Remove/Install Load Compartment Inner Side Paneling - AR68.30-P-1180CY
MODEL 204.9
| Remove/install | |||

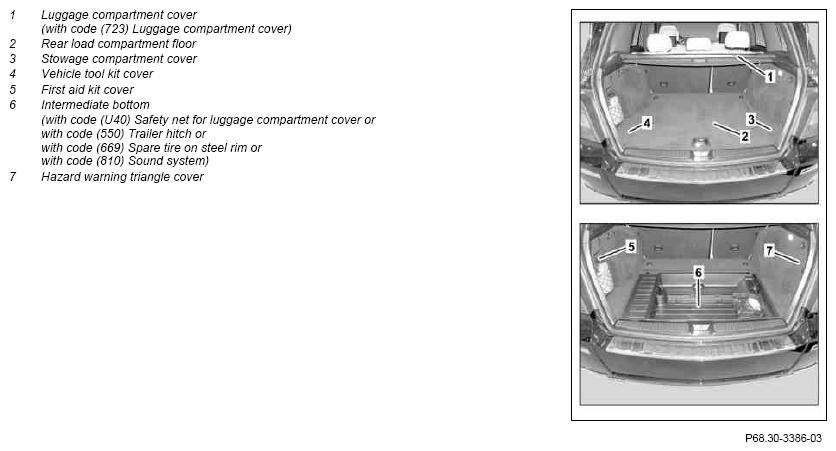

| 1 | Unhook luggage compartment cover (1), release on left and right and remove | For vehicles with code (723) luggage compartment cover | |
| 2 | Remove rear cargo area floor (2) | ||
| 3 | Remove intermediate bottom (6) | On vehicles with code (U40) Safety net for luggage compartment cover or with code (550) Trailer hitch or with code (669) Spare tire on steel rim or with code (810) Sound system |
|
| 4.1 | Remove vehicle tool kit cover (4) | ||
| 4.2 | Remove stowage compartment cover (3) | ||
| 5.1 | Remove first air kit cover (5) | ||
| 5.2 | Remove hazard warning triangle cover (7) | ||

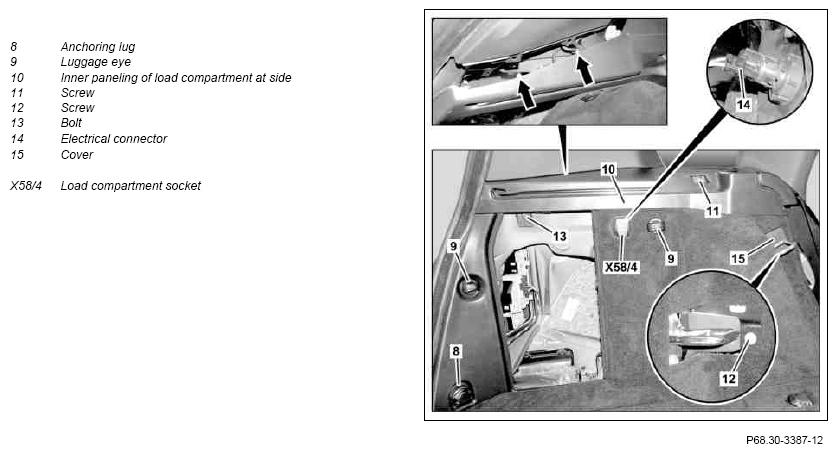

| 6 | Remove anchoring lug (8) | *BA68.50-P-1001-03I | |
| 7 | Remove luggage eyes (9) | ||
| 8 | Fold over left or right rear seat backrest | ||
| 9 | Unclip cover (15) from closing hook on rear bench seat | ||
| 10 | Remove bolts (11, 12, 13) | ||
| 11.1 | Disconnect electrical connector (14) from cargo area socket (X58/4) | ||
| 11.2 | Disconnect electrical connector from right trunk lamp | ||
| 12 | Unclip side cargo area interior trim (10) from C-pillar (arrows) and remove | ||
| 13 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 204 | |
|---|---|---|---|
| BA68.50-P-1001-03I | Bolt for anchoring lug | Nm | 24 |
