Remove/install backup camera - AR54.65-P-0030CYA

MODEL 204.9 with CODE 501 (360° camera) without CODE 218 (Rear view camera)

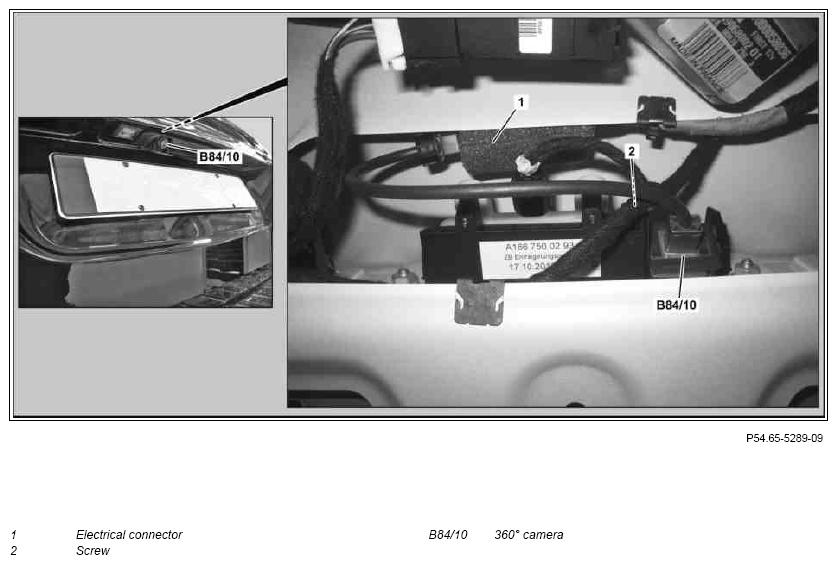

Fig 1: Identifying Backup Camera Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition
2	Remove door lining on rear-end door		AR72.20-P-3520CY
3	Remove electrical connection (1) of rear 360° camera (B84/10) from the rear-end door, release and disconnect
4	Remove screw/bolt (2) and take off retaining clamp
5	Remove rear 360° camera (B84/10) from door handle
6	Install in the reverse order
7	Calibrate rear 360° camera (B84/10) with diagnostic unit
			AD00.00-P-2000-04A
		For initial operation or after working on 360° rear camera (B84/10) or rear-end door
