Remove/install backup camera - AR54.65-P-0030CY

MODEL 204.9 with CODE 218 (Reversing camera) without CODE 498 (Japanese version)

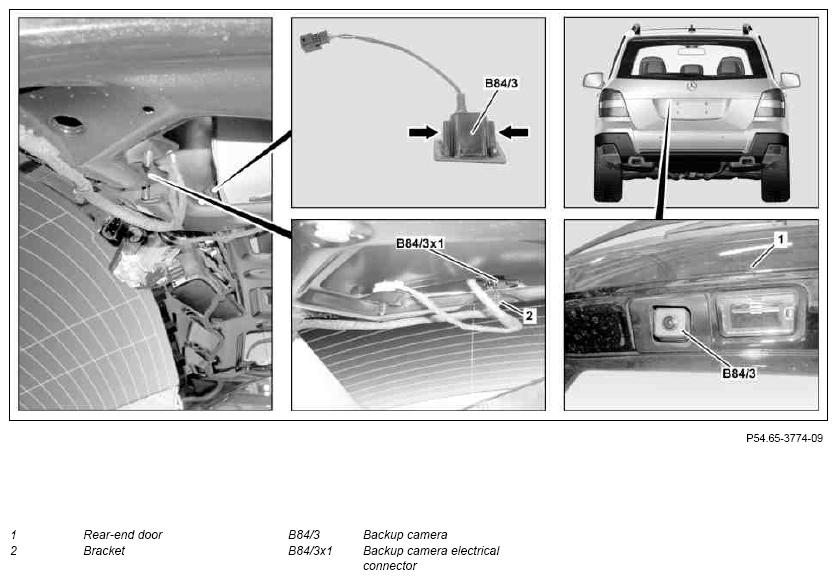

Fig 1: Identifying Backup Camera Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center door lining from rear-end door (1)	MODEL 204.9	AR72.20-P-3520CY
2	Detach electrical connection from backup camera (B84/3x1)
3	Release catch hook on coupling of backup camera electrical connector (B84/3x1) and slide coupling of backup camera connector (B84/3x1) from bracket (2)
4	Press catches on backup camera (B84/3) (arrows) and remove backup camera (B84/3) from rear-end door (1) towards outside	Check seal on reversing camera (B84/3) for damage. Check reversing camera (B84/3) is latched correctly into place.
5	Install in the reverse order
6	Calibrate reversing camera (B84/3) using STAR DIAGNOSIS and calibration device	During initial startup or after working on the reversing camera (B84/3) or rear-end door
			AD00.00-P-2000-04A
		Calibration device	Fig 2
