Overview Of System Components For Energy Management - GF54.10-P-9990CE
MODEL 204.0/2 as of model year 2009/YoM 08
MODEL 204.3
MODEL 204.9

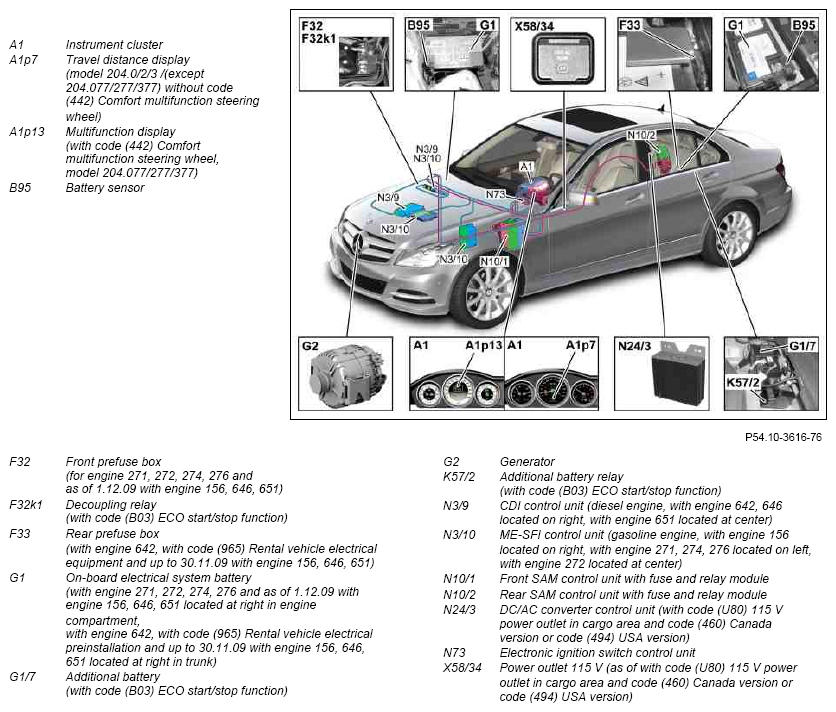

Model 204.0/2/3, shown on model 204.0

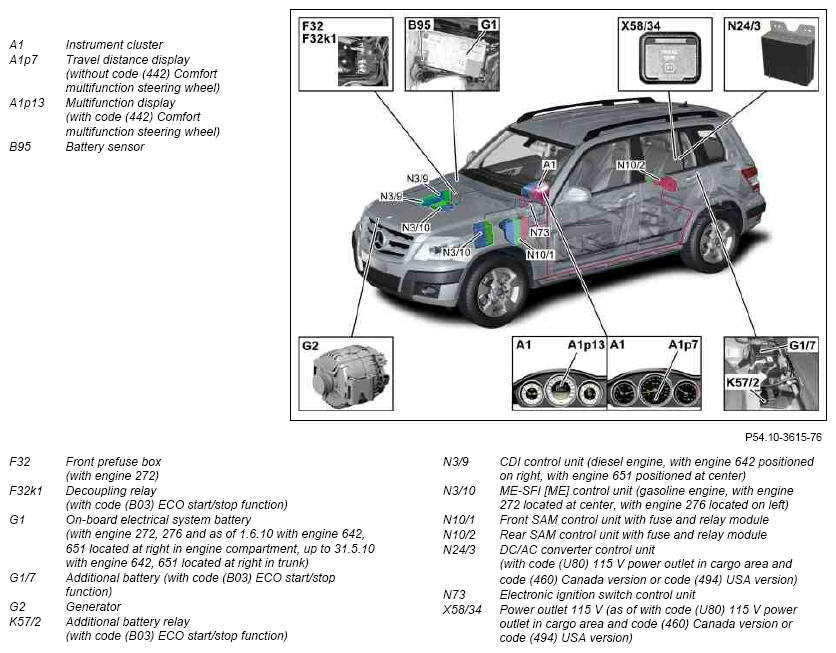

Model 204.9
With vehicles up to 31.5.10 with engine 642, 651 the rear prefuse box is located at the right in the trunk, in the vicinity of the on-board electrical system battery.
| Instrument cluster, component description | A1 | GF54.30-P-6000CE | |
| CDI control unit, component description | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| With engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| ME-SFI [ME] control unit, component description | N3/10 With engine 156 in model 204.0/2/3 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 |
GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 274.9 | GF07.61-P-6000MR | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Front SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6070CE | |
| Rear SAM control unit with fuse and relay module, component description | N10/2 | GF54.21-P-6030CE | |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001CE | |
| Component description for DC/AC converter control unit | N24/3 With model 204. 0/9 with code (U80) 115 V power outlet and code (460) Canada version or code (494) USA version, |
GF54.21-P-4127GD | |
| Table of contents for function description of energy management | GF54.10-P-0990CE |
