Remove and install DC/AC converter control unit - AR54.21-P-1600CY
MODEL 204.9 with CODE U80 (115 V socket in load compartment)
| Risk of death from touching live components with AC voltages over 30 V | Do not touch live parts. Persons who have electronic implants (e.g. cardiac pacemakers) must not perform any work on components conducting AC voltage greater than 30 V. | AS54.00-Z-0001-05A | |
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery | AR54.10-P-0003CW | |
| 2 | Remove inner paneling on right side of load compartment | Remove/install load compartment inner side paneling | AR68.30-P-1180CY |

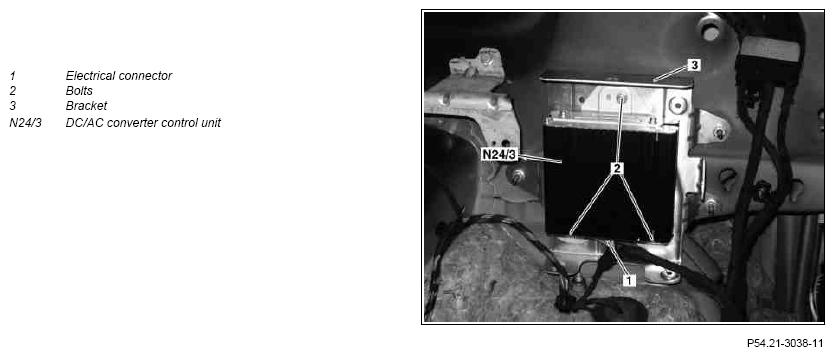

| 3 | Disconnect electrical connection (1) | ||
| 4 | Unscrew bolts (2) and remove DC/AC converter control unit (N24/3) from bracket (3) | ||
| 5 | Install in the reverse order |
