Remove/install floor covering in rear - AR68.20-P-4800GZ

MODEL 164 (floor covering, 2nd seat row)

Shown on model 164.1

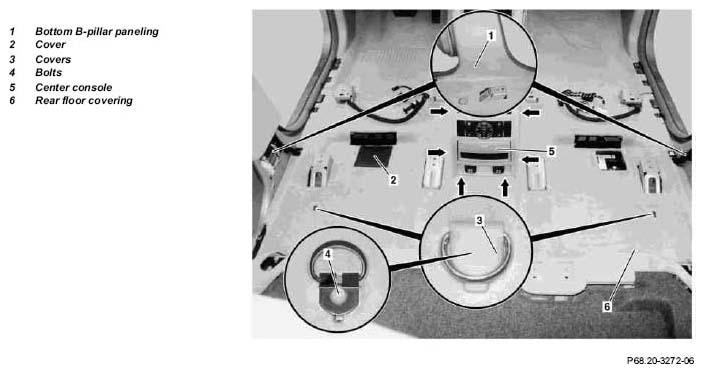

Fig 1: Identifying Floor Covering Remove/Install Components In Rear

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove both front seats		AR91.10-P-1000GZ
2	Remove door sill moldings	On all doors.	AR68.30-P-4100GZ
3.1	Remove seat cushion from 60% rear seat	Model 164.1.	AR91.12-P-1020GZA
3.2	Remove front plastic cover at bottom of 60% rear seat	Model 164.8.
4.1	Remove seat cushion from 40% rear seat	Model 164.1.	AR91.12-P-1020GZ
4.2	Remove front plastic cover at bottom of 40% rear seat	Model 164.8.
5	Unclip lower B-pillar paneling (1) on both sides.	Position long wedge at top of lower B-pillar.
		Long wedge	Figure
6	Unclip cover (2)	If present.
7	Unclip covers (3).
8	Remove bolts (4)		*BA68.50-P-1002-03F
9	Pull rear floor coverings (6) out below center console (5)	Installation:  Carefully raise center console (5) with long wedge (arrows) to prevent damage.
		Long wedge	Figure
10	Remove rear floor covering (6).	Remove through rear door
11	Install in the reverse order
