Remove/install rear seat cushion - AR91.12-P-1020GZ

MODEL 164.1

40 % rear seat

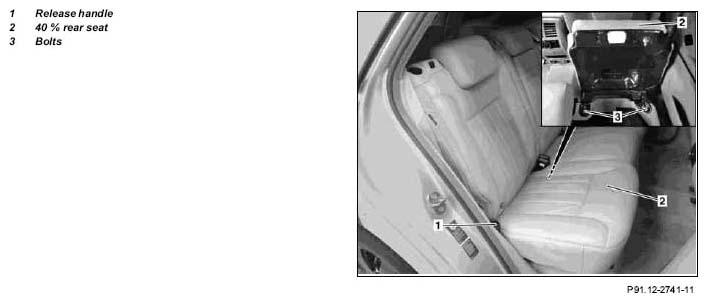

Fig 1: Identifying Rear Seat Cushion Components - 40 % Rear Seat

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Pull up release handle (1) and move 40 % rear seat (2) to the vertical position	Installation:  40 % rear seat (2) must latch.
2	Remove bolts (3)		*BA91.12-P-1001-03F
3	Remove 40 % rear seat (2)
4	Install in the reverse order

REAR SEATS

Number	Designation		Model 164.1
BA91.12-P-1001-03F	Bolt, rear seat console to vehicle floor	Nm	50
