Remove/install outside mirror trim - AR88.70-P-9040GZA

MODEL 164 as of model year 2009 up to 2010

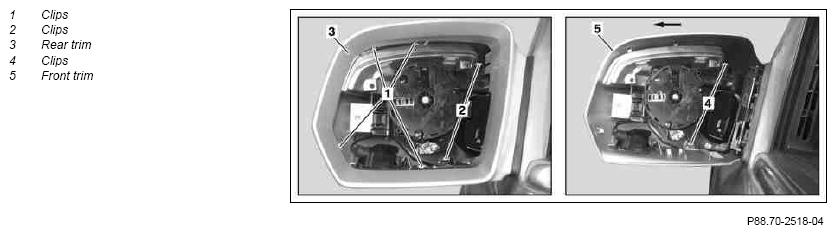

Fig 1: Identifying Outside Mirror Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass		AR88.70-P-9020GZ
2	Unclip clips (1) inwards	Simultaneously pull rear paneling (3) toward front.
3	Unclip clips (2) toward outside	Simultaneously pull rear paneling (3) toward front.
4	Remove rear paneling (3)
5	Unclip clips (4)
6	Remove front paneling (5) toward outside (arrow)
7	Install in the reverse order
