Remove/install mirror glass - AR88.70-P-9020GZ

MODEL 164 up to model year 2010

Shown on vehicle with code (249)

Automatically dimming inside rearview mirror and outside mirror (driver)

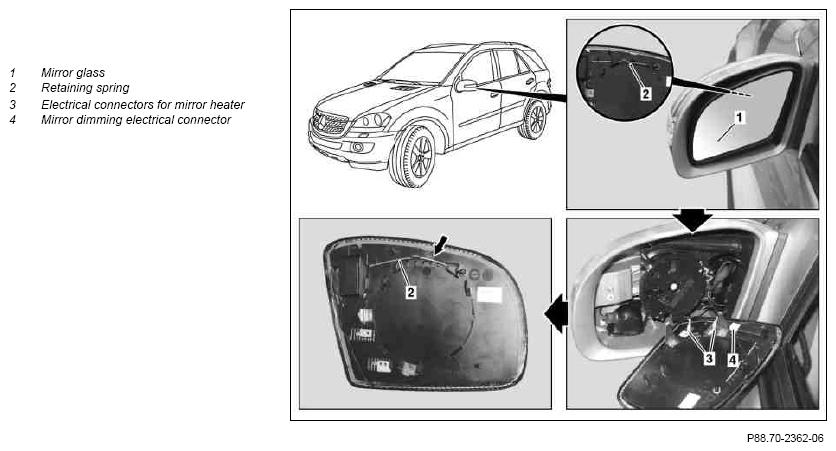

Fig 1: Identifying Mirror Glass Remove/Install Components - Shown On Vehicle With Code (249)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  Skin, eye and respiratory system irritation may occur through contact or inhalation of substances contained in the mirror lens	Wear protective gloves and safety glasses.	AS60.00-Z-0008-01R
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Tilt out mirror lens (1) upward
3	Press retaining spring (2) upward with suitable screwdriver and press mirror lens (1) off of mirror adjustment drive	Clip mirror lens (1) into mirror adjustment drive from bottom upward. Observe retaining spring (2), fasteners on mirror lens as well as fasteners on mirror adjustment drive.
4	Disconnect electrical connectors (3) from mirror heater
5	Disconnect electrical connector from mirror dimming (4)	On vehicles with code (249) Automatically dimming inside rearview mirror and outside mirror (driver)
6	Install in the reverse order
7	Clean mirror lens
8	Carry out function check
