Remove/install rear center console switch module - AR68.20-P-2210GZ

MODEL 164

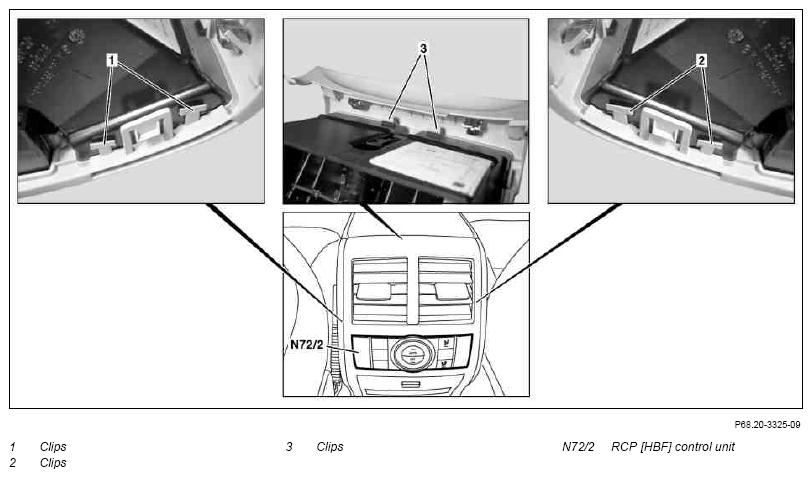

Fig 1: Identifying Rear Center Console Switch Module Remove/Install Components

Courtesy of MERCEDES-BENZ USA

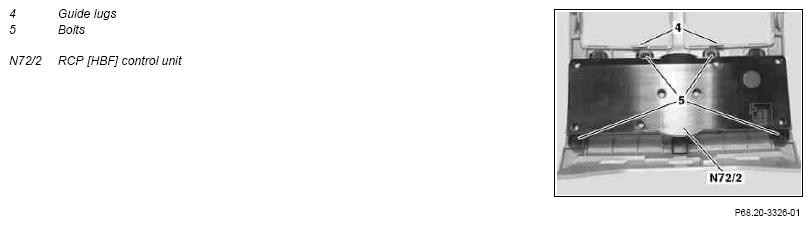

Fig 2: Identifying RCP(HBF) Control Unit

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear center console		AR68.20-P-2020GZ
2	Unclip clips (1, 2, 3)	Long wedge	Figure
3	Remove air outlet	Observe air outlet installation position in guide lugs (4).
4	Remove bolts (5)
5	Remove RCP control unit (N72/2)
6	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)
