Remove/install rear center console - AR68.20-P-2020GZ

MODEL 164

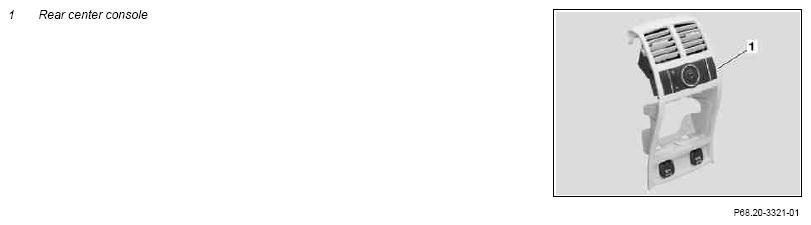

Fig 1: Identifying Rear Center Console

Courtesy of MERCEDES-BENZ USA

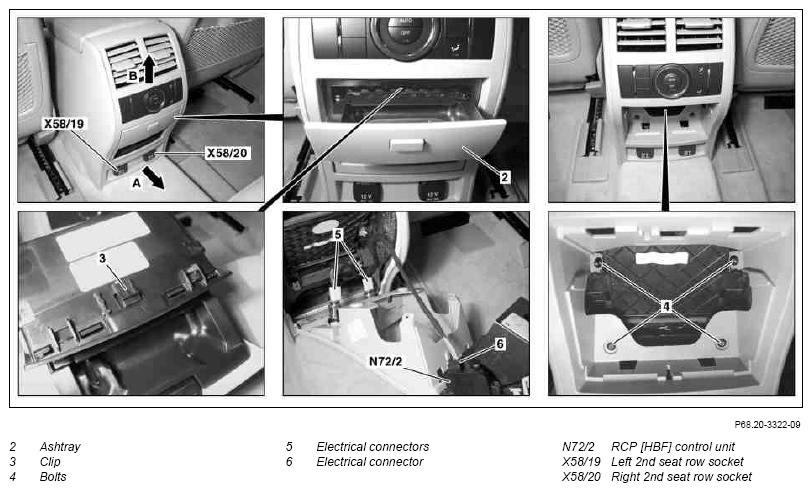

Fig 2: Identifying Rear Center Console Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely move driver's seat toward front.
2	Switch off ignition and remove transmitter key from EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
3	Open ashtray (2)
4	Unclip clip (3) from ashtray (2).	Ashtray (2) should arrest audibly.
		Long wedge	Figure
5	Remove ashtray (2).
6	Remove screws (4)
7	Unlock armrest cover and set upright
8	Unclip rear center console (1) upward (arrow B)	Pay attention to metal clips. Pull up lower area (arrow A) of rear center console (1).
		Long wedge	Figure
9	Disconnect electrical connectors (2) from left 2nd seat row socket (X58/19) and right 2nd seat row socket (X58/20)
10	Disconnect electrical connector (6) from RCP control unit (N72/2)
11	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
